School Parking Lot 1 / 3" Sony CCD IR Bullet Cameras , 35M Distance HW-816
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | cctv bullet cameras,security cctv camera |
||
|---|---|---|---|

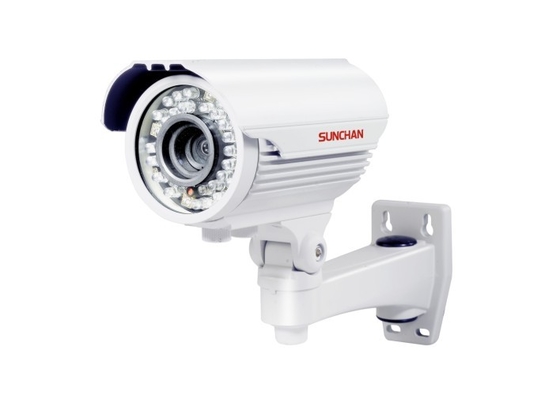

School Parking Lot 1 / 3" Sony CCD IR Bullet Cameras , 35M Distance HW-816
Quick details
- 35M IR Distance
- Varifocal lens
- for school, parking lot
- With bracket
- OSD cable
Description:
Outdoor waterproof camera, 35M Distance
Waterproof standard: IP66
Varifocal lens
With bracket
Specifications:
|
Model: |
HW-816SN |
HW-816EF2 |
|
VIDEO |
||
|
Imaging Device |
1/3" Sony 3142 DSP + Sony Super HADII 632/633 CCD |
1/3" Sony Effio-E 4140 + Sony Ex-ViewII 672/673 CCD |
|
Total Pixels |
PAL:537(H)×597(V) NTSC:537(H)×505(V) |
PAL:1020(H)×596(V) NTSC:1020(H)×508(V) |
|
Effective Pixels |
PAL:512(H)×582(V) NTSC:512(H)×494(V) |
PAL:976(H)×582(V) NTSC:976(H)×494(V) |
|
Scanning System |
2:1 interlace |
|
|
Synchronization |
Internal |
|
|
Frequency |
H:15.625KHZ/V:50HZ |
|
|
Horizontal Resolution |
420TVL |
700TVL |
|
Min. Illumination |
Color:0.05Lux, B/W: 0.01Lux (IR Off) |
Color:0.1Lux, B/W: 0.05Lux |
|
S/N Ratio |
≥48dB(AGC Off) |
≥52dB(AGC Off) |
|
Video Output |
CVBS:1.0Vp-p/75Ω composite |
|
|
LENS |
||
|
Focal Length |
4-9mm |
|
|
Max.Aperture Ratio |
1:F1.4 |
|
|
Angular Field of View |
D:35-75°/H:30-58°/V:25-45° |
|
|
Focus Control |
manual |
|
|
Lens Type |
Fixed lens |
|
|
OPERATIONAL |
||
|
Gama Correction |
R0.45 |
>R0.45 |
|
Electronic Shutter Speed |
PAL:1/50~1/100,000sec,NTSC:1/60~1/100,000sec |
|
|
Distance |
30M(LED Array) |
|
|
OSD |
No Function |
built in |
|
Camera name |
ON/OFF |
|
|
Mirror |
Mirror |
|
|
WDR range |
52dB |
|
|
External Synchronization |
line-lock |
|
|
White Pixel Detection and Compensation |
Static and Dynamic |
|
|
Menu Language |
8 languages, Chinese/English/Japanese/German/France/Russian/Portuguese/Spanish |
|
|
Backlight |
ATR/OFF/BLC/HLC |
|
|
Privacy mask |
ON/OFF(8 presets) |
|
|
2DNR |
Adjustable |
|
|
AGC |
Auto/Manual |
|
|
White Balance |
ATW/Manual |
|
|
ENVIRONMENTAL |
||
|
Operating Temperature/Humidity |
-10℃ - +50℃(-50°F~+122°F)/Less than 90% RH |
|
|
ELECTRICAL |
||
|
Input Voltage/Current |
DC12V +10% |
|
|
Power Consumption |
1000mA |
|
|
Adapter Requirement |
DC12V 1500mA |
|
|
MECHANICAL |
||
|
Color/Material |
ivory/ Aluminium alloy |
|
|
Bracket |
All-Oriented Bracket |
|
|
Dimensions(W×H×D) |
240.8×83.3×179.5mm |
|
|
Net Weight |
1.4kg |
|
Competitive Advantage:
Color waterproof outdoor camera, high quality
With bracket
OSD cable
waterproof
Application:
Outdoor, IP66 protect level, available work environment like school, park, shop etc.
Package pictures:
We can provide elegant and simply color package box match with diifferent size and style cameras.
