Progressive Scan CMOS IP Network Security Cameras , Mega Pixel 30 FPS EPC-HD203MP2

large.img.alt
small.img.alt

Large Image :  Progressive Scan CMOS IP Network Security Cameras , Mega Pixel 30 FPS EPC-HD203MP2 Get Best Price

Product Details:
Place of Origin: China
Brand Name: DEBFFENG
Certification: ISO
Model Number: EPC-HD203MP2
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiate
Packaging Details: According to customer’s requirment
Delivery Time: 7-15days
Payment Terms: L/C,T/T,Paypal
Supply Ability: 5,000pcs per month
Detailed Product Description
High Light:

network ip security cameras

,

ip security cameras

Progressive Scan CMOS IP Network Security Cameras , Mega Pixel 30 FPS EPC-HD203MP2



Quick details

  1. 1/3" Progressive Scan CMOS
  2. resolution Mega pixel 30 fps 1280*720
  3. Support two-way audio
  4. CS Mount

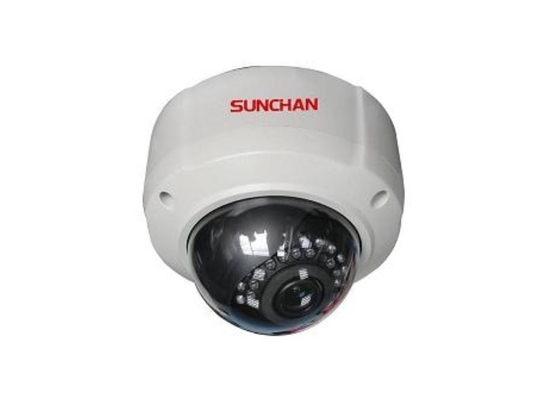

Product picture:

Progressive Scan CMOS IP Network Security Cameras , Mega Pixel 30 FPS EPC-HD203MP2 0



Specifications:



Model

EPC-HD203MP2

Dome IP Camera

Image Sensor

1/3" Progressive Scan CMOS

Effective Pixels

1280(H)x720(V)

Lens

6mm

Lens Mount

CS Mount

Auto Iris Lens

N/A

Exposal control

Auto

Auto Day/Night

Support

IR Distance

10-15M

Electronic Shutter Speed

1/50s —1/4,000 sec.

Image Setting

Brightness, contrast, hue, AGC,AWB, Privacy mask, Motion Detection

Image Flip

Yes

S/N Ratio

More than 50 dB

Analog Video Output

1Vp-p Composite Output (75 Ohm, BNC)

Video Compression

H.264/MJPEG

Bit-rate Range

1M~16Mbps/1M~20Mbps,CBR/VBR variable

Audio Compression

G.726/G.711/G.722

Max. Image Resolution

1280*720

Frame Rate

25 fps (1280*720), 25 fps (704*576),25 fps (352*288) Optional

Function

Remote config/update

Support

Network Protocol

PPPoE,DHCP,TCP/IP,HTTP,UDP,RTP/RTCP,RTSP,UPNP,SMTP,FTP,DDNS,DNS

Security

Multi-level user access with password protection

HeartBeat

Support

Dual Stream

30 fps (1280*720), 25 fps (352*288)/ 30 fps (1280*7280), 25 fps (704*288) Optional

Local Storage

N/A

Communication port

10/100Mbps, RJ45 Adaptive Ethernet port

Audio Interface

1 channel 3.5mm audio interface input (BNC,MIC Via DIP Switch)

1 channel 3.5mm audio interface output

Alarm port

N/A

Intelligent Alarm

Motion Detection, Video Tampering, I/O Alarm

General

Voltage

DC12V/1A (outlay POE adapter optional)

Temperature

-10℃~55℃

Humidity

≤95%

Consumption

<10W

Net Weight

0.95(KG)

Product Dimension (mm)

Φ154*129(H)

Description:



Support high definition resolution Mega pixel 30 fps @1280*720

H.264/MJPEG compression

Support WEB browser, remote config/update, replay, record

Delay Time Less than 200 MSEL (0.2 second) in LAN.

DDNS in LAN/WAN access supported

Support two-way audio

Support Dual stream, Internet transmission and local storage independently

Support snapshot, record, replay

ONVIF compatible



SUNCHAN Advantage

  • 21 Years professional security camera experience
  • 1 Year quality warrenty
  • Deliver time Guarantee
  • TOP 20 Leader in security camera area in China



Package pictures:

We can provide elegant and simply color package box match with diifferent size and style cameras.



Progressive Scan CMOS IP Network Security Cameras , Mega Pixel 30 FPS EPC-HD203MP2 1



OEM/ODM service:

We can provide OEM/ODM to customer.



Get to know your new partner: SUNCHAN



Company profile:

Sunchan Development (Shenzhen)Co., Ltd ( Previously named YES Development Co.,Ltd ),built in 1992, is one of the leading CCTV Camera manufacturers which develops and produces CCTV products in China

Progressive Scan CMOS IP Network Security Cameras , Mega Pixel 30 FPS EPC-HD203MP2 2





Test equipments:



Progressive Scan CMOS IP Network Security Cameras , Mega Pixel 30 FPS EPC-HD203MP2 3



Certificate and award:



Progressive Scan CMOS IP Network Security Cameras , Mega Pixel 30 FPS EPC-HD203MP2 4





Sunchan exhibition and sales team:



Progressive Scan CMOS IP Network Security Cameras , Mega Pixel 30 FPS EPC-HD203MP2 5



Sunchan's engineering projects:



Progressive Scan CMOS IP Network Security Cameras , Mega Pixel 30 FPS EPC-HD203MP2 6
