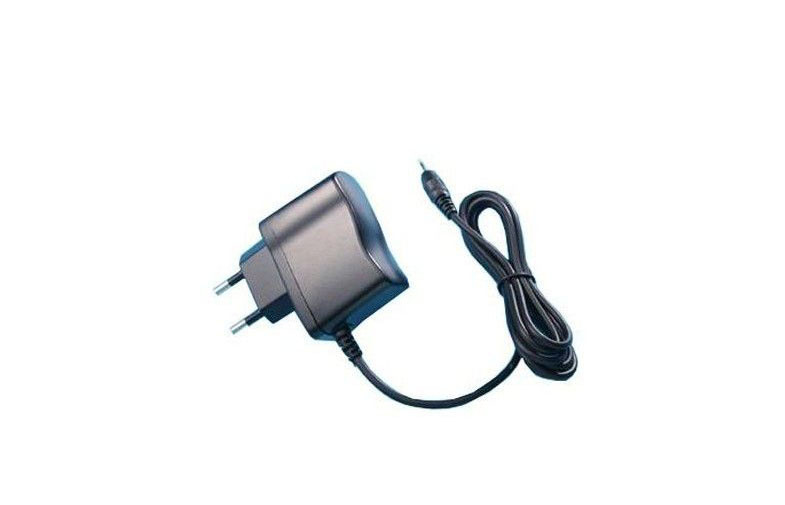

Switching Power Supply

Model No.: 12W series  (Eu type)

APPLICATION FOR

＊Communication and Digital Device,PDA,Scanner,network equipment

FEATURE

＊ Wall mount type
＊ Universal input
＊ Optional output connector
＊ Overload and short circuit protection, LPS

ENVIRONMENTION

＊ Operationg temperature:0℃----+40℃
＊Operationg humidity:5%--95% relative humidity              (non-condensing)


ELECTRICAL

＊ Input Voltage: 100-264V ac
＊ Input Frequency Range: 47Hz～63Hz
＊ Input Current: 0.45A(Max)at AC100V
＊ Efficiency: 80%(MIN)at Rated Voltage
＊ DC Output Voltage:±0.5V
＊ DC Output Power: 12w (max)

＊ Ripple and Noise: ≤120Mv at full road with 20MHz bandwidth
＊ Turn On Delay Time: ≤3S  (AC:110V and full load)
