Outdoor IP Network Security Cameras With 3.6mm Lens , High Resolution

large.img.alt
small.img.alt

Large Image :  Outdoor IP Network Security Cameras With 3.6mm Lens , High Resolution Get Best Price

Product Details:
Place of Origin: China
Brand Name: DEBFFENG
Certification: ISO
Model Number: EPC-HR215FP2
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: According to customer’s requirment
Delivery Time: 7-15days
Payment Terms: L/C,T/T,Paypal
Supply Ability: 5,000pcs per month
Detailed Product Description
Model: EPC-HR215FP2 Image Sensor: 1/3" Progressive Scan CMOS
Effective Pixels: 2548(H)x1536(V) Lens: 3.6mm Or 6mm
Lens Mount: MTV Mount IR Distance: 15-25M
High Light:

dome network camera

,

ip security cameras

Outdoor IP Network Security Cameras With 3.6mm Lens , High Resolution



Quick details

  1. H.264/MJPEG compression
  2. Support two-way audio
  3. Support Dual stream
  4. Support snapshot, record, replay
  5. IR Distance 15-25M



Description:



Support high definition resolution Mega pixel 20 fps @2048*1536

H.264/MJPEG compression

Support WEB browser, remote config/update, replay, record

Delay Time Less than 200 MSEL (0.2 second) in LAN.

DDNS in LAN/WAN access supported

Support two-way audio

Support Dual stream, Internet transmission and local storage independently

Support snapshot, record, replay

        ONVIF compatible



Specification:

Model

EPC-HR215FP2

Dome IP Camera

Image Sensor

1/3" Progressive Scan CMOS

Effective Pixels

2548(H)x1536(V)

Lens

3.6mm or 6mm

Lens Mount

MTV Mount

Auto Iris Lens

N/A

Exposal control

Auto

Auto Day/Night

Support

IR Distance

15-25M

Electronic Shutter Speed

1/50s —1/4,000 sec.

Image Setting

Brightness, contrast, hue, AGC,AWB, Privacy mask, Motion Detection

Image Flip

Yes

S/N Ratio

More than 50 dB

Analog Video Output

1Vp-p Composite Output (75 Ohm, BNC) Option

Video Compression

H.264/MJPEG

Bit-rate Range

1M~8Mbps/1M~16Mbps,CBR/VBR variable

Audio Compression

G.726/G.711/G.722

Max. Image Resolution

2048*1536

Frame Rate

2048*1536@20fps,1920*1080@30fps,1280*720@30fps,704*576@25fps,Optional

Function

Remote config/update

Support

Network Protocol

PPPoE,DHCP,TCP/IP,HTTP,UDP,RTP/RTCP,RTSP,UPNP,SMTP,FTP,DDNS,DNS

Security

Multi-level user access with password protection

HeartBeat

Support

Dual Stream

25 fps (1280*960), 30 fps (1280*720),25 fps (704*288) Optional

Local Storage

N/A

Communication port

10/100Mbps, RJ45 Adaptive Ethernet port

Audio Interface

1 way line in and 1 way out



Alarm port

N/A

Intelligent Alarm

Motion Detection, Video Tampering

General

Voltage

DC12V/1A (outlay POE adapter optional)

Temperature

-10℃~55℃

Humidity

≤95%

Consumption

<6W

Net Weight

0.9(KG)

Product Dimension (mm)

228.5L)*73.6(W)*75.5mm(H)

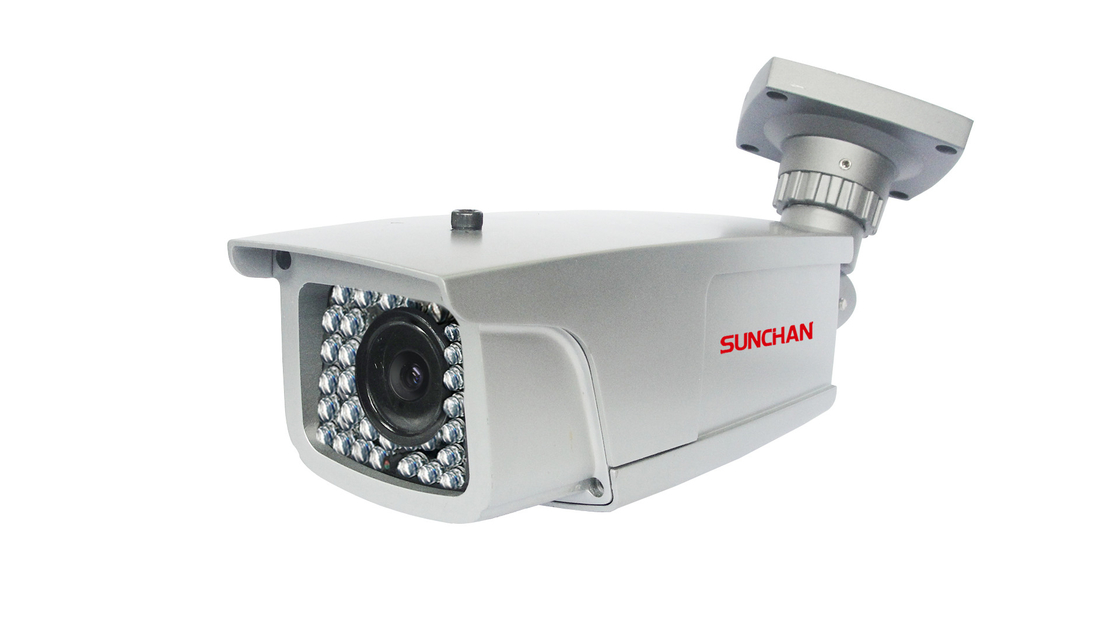

Product pictures:

Outdoor IP Network Security Cameras With 3.6mm Lens , High Resolution 0



Outdoor IP Network Security Cameras With 3.6mm Lens , High Resolution 1



Get to know your new partner: SUNCHAN



Outdoor IP Network Security Cameras With 3.6mm Lens , High Resolution 2




Test equipments:



Outdoor IP Network Security Cameras With 3.6mm Lens , High Resolution 3



Certificate and award:



Outdoor IP Network Security Cameras With 3.6mm Lens , High Resolution 4



Our market and ambition:



Outdoor IP Network Security Cameras With 3.6mm Lens , High Resolution 5



Sunchan exhibition and sales team:



Outdoor IP Network Security Cameras With 3.6mm Lens , High Resolution 6



Sunchan engineering projects:



Outdoor IP Network Security Cameras With 3.6mm Lens , High Resolution 7

Thanks for your watching, and hope to cooperate with you soon.
