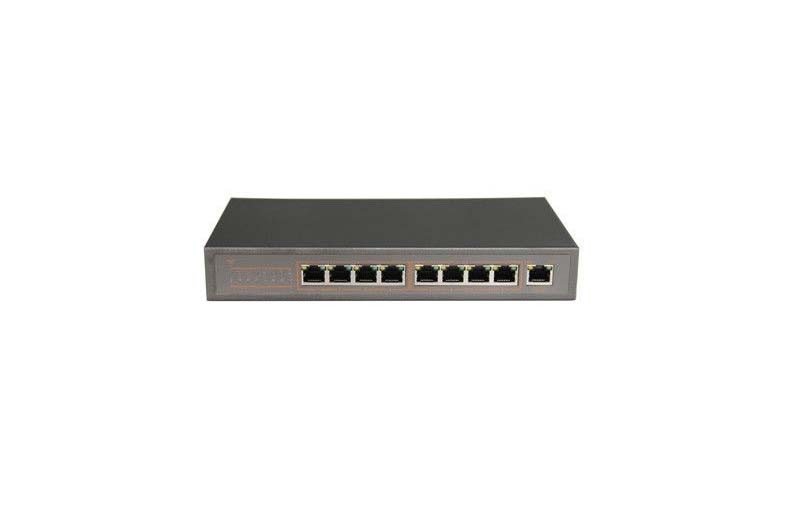

Network 8 Port POE Switch

large.img.alt
small.img.alt

Large Image :  Network 8 Port POE Switch Get Best Price

Product Details:
Place of Origin: China
Brand Name: SMARTISCAM
Certification: CE,ROHS, FCC
Payment & Shipping Terms:
Price: negotiation
Packaging Details: Gift box
Delivery Time: 5-10 days
Payment Terms: L/C,T/T,Paypal
Supply Ability: 1 0,000PCS/week
Detailed Product Description
High Light:

CCTV Camera parts

,

cctv camera spare parts



 Reliable  IP Camera Accessories , Compact 8 Ports POE Switch





Introduction:
The PoE switch provides power and data from a single point,using Power over Ethernet(PoE)over a single Cat-5 cable.LS5000 series can be used for any 10/100Mbps link and supply industry-standard IEEE 802.3af power.Advanced auto-sensing algorithm gives power to 802.3af end devices,In addition,the PoE seitch automatically determines PoE requirements,speed,duplex,and cable type using AutoUplink.Easy to operate and reliable.
The PoE switch is ideal for powering PoE devices such as IP cameras,WLAN access points,IP phones,office access control systems,and other PD devices and offers a line of high quality products that provide a total solution for ethernet application in different environments.



Key Features:
•  Fully IEEE802.3af/IEEE802.3at standard compliant
•  Support PoE power up to 15.3W/25.5W for each PoE ports
•  Auto detect powered device(PD)
•  Long distance PoE data transmission.(80m)
•  Safe and reliable power to most of PoE end device
•  Lighting-proof and Compact design
•  Plug & Play.No configuration required
•  Reliable and great value

Technology

Netword Standards

IEEE 802.3i 10BASE-T
IEEE 802.3u 100BASE-Tx
IEEE 802.3x Flow Control
IEEE 802.3af/at Power over Ethernet

PoE power

15.4W/25.5W per port(IEEE802.3af/IEEE802.3at)
Wiring:Data & power provided over pairs 1/2 and 3/6 or 4/5(+) and 7/8(-)
Cable:UPT cat.5 or higher

Processing types

Store-and-forward
Half-duplex back pressure and IEEE802.3x full-duplex flow control

Address database Table Size

8000MAC address

Buffer memory

48Kb embedded memory per unit

Netword Latency

Less than 20μs for 64-byte frames in Store-and-forward mode for 100Mbps to 100Mbps transmission

Power

Input

48VDC input

PoE power consumption

15.4W/25.5W per port(IEEE802.3af/IEEE802.3at)

Overload current protection

Present

Mechanical

Casing

Metal case

Dimension

215(L) * 106(W) * 33(H)mm

Weight

0.63KG

Installation

Rack mounting

Interface

LED Indicators

System:Power,PoE Maximum power
Per port:Link.Activity,.Speed,PoE active,PoE error

Environment specification

Operating temperature

0-55°C(32-104°F)

Storage temperature

-10-70°C(14-158°F)

Operating humidity

90% maximum relative humidity,non-condensing

Storage humidity

95% maximum relative humidity,non-condensing

Regulatory Approval

ISO

Manufactured in ISO9001 facility

Safety

CE/RoHS/FCC



Reliable CCTV Camera Spare Parts , Compact 8 Ports POE Switch

Reliable CCTV Camera Spare Parts , Compact 8 Ports POE Switch

Reliable CCTV Camera Spare Parts , Compact 8 Ports POE Switch
