Resolution: | 1280X960 High Resolution | Sensor: | 1/3" 1.3 Mega Pixel CMOS Sensor |
---|---|---|---|
IR: | 1pc Array LED,with 35M IR Range | Video Compression: | H.264/MPEG4 Video Compression |
Function: | Waterproof,weather Proof,outdoor IP Network Megapixel Camera | Day And Night System: | IR-CUT Filter With Auto Switch |
High Light: | network security camera,hd cctv cameras |
LED Outdoor Ip Network Security Cameras With Low Lux Array
Quick details
1.1280X960 High resolution
2.1/3" 1.3 Mega pixel CMOS sensor
3.1pc Array LED,with 35M IR Range
4.H.264/MPEG4 Video compression
5.Motion detector
6.Waterproof,weather proof,outdoor IP Network Megapixel Camera
Description:
Specifications:
Model NO |
EPC-HR813AR1 |
|
Camera |
Sensor |
1/3" 1.3 Mega pixel CMOS sensor |
Effective Pixel |
1280×960 |
|
Exposure Control |
Auto |
|
Minimum Illumination |
Color: 0.6 Lux@F1.2,B&W:0.08lux @ F1.6 (0 Lux with IR) |
|
Lens |
CS mount, standardL:6mm |
|
Auto Iris |
N/A |
|
Electronic Shutter |
Automatic/manual (1/30 -1/4000 sec) |
|
S/N |
≥50dB |
|
AGC |
Auto |
|
White balance |
Auto |
|
Backlight compensation |
Auto |
|
Day and night system |
IR-CUT filter with auto switch |
|
IR Distance |
35m |
|
Compression |
Video Compression |
H.264/ MPEG4 |
Compression Rate |
1Mbps~8Mbps,CBR/VBR |
|
Audio Compression |
Audio:G.711,Speak:G.722 |
|
Audio Rate |
64Kbps |
|
Image |
Max frame rate |
1280×960@25 fps ;704×576@ 25 fps , 352×288@25 fps |
Image adjustment |
Saturation, brightness, contrast adjust through CMS or IE |
|
Network |
Protocol |
TCP/IP,HTTP,DHCP,DNS,DDNS,FTP,NTP,PPPOE,RTSP,UDP,UPNP,SMTP,RTP |
Alarm |
Motion detective/ Area shield,I/O Alarm |
|
Motion detective |
Support |
|
Area shield |
Support |
|
Heartbeat detective |
Support |
|
Password protection |
Support |
|
Dual-stream |
1280×960@25fps ,704×576@15fps (optional) |
|
Remote upgrade and maintenance |
Support |
|
Interface |
communication interface |
1 RJ45 port 10M/100M Adaptive Ethernet front-end ports |
General |
Temp/Humidity |
-10℃~60℃/≤85%RH |
Power supply |
DC12V/2A |
|
Power |
<5W |
|
Size |
187×104×76.5 |

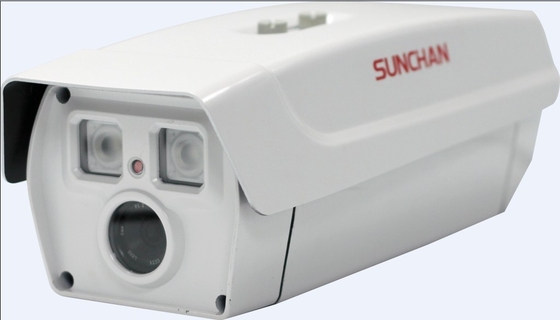

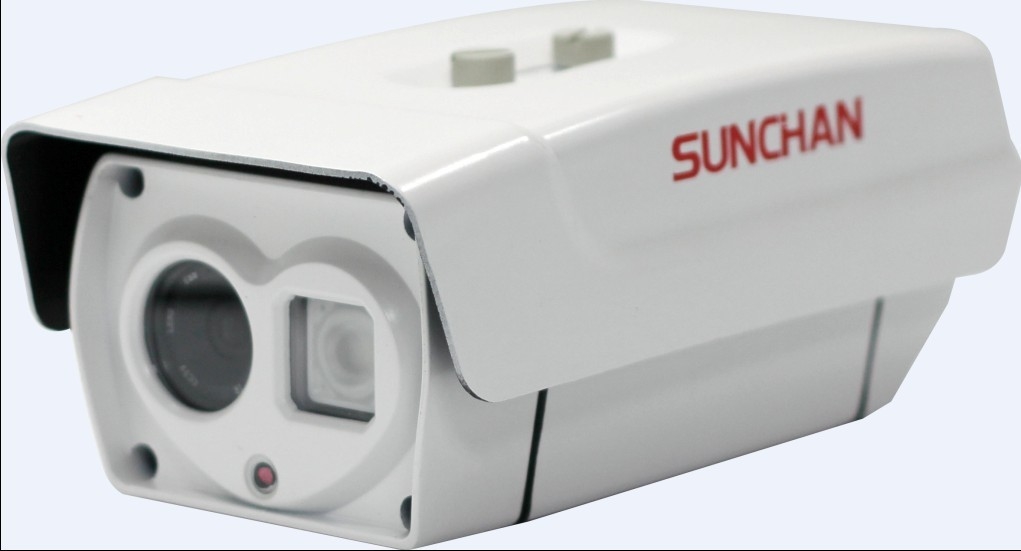

Product pictures:
