IR Cut Fliter White Balance Mirror BLC IR Bullet Cameras , Auto AGC SC-2136
Quick details
Description:

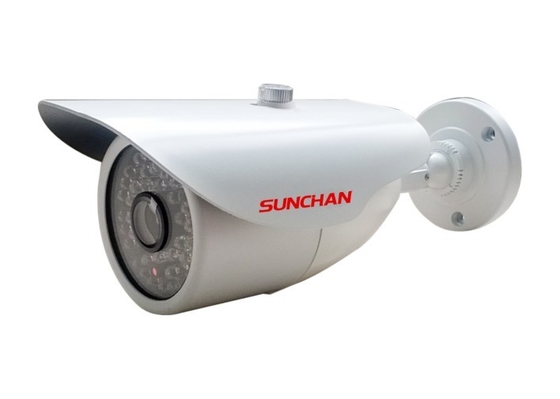

Metal IR Waterproof Camera, High Definition
Specifications:
Model: |
SC-2136M |
SC-2136EF2 |
||
VIDEO |
||||
Imaging Device |
1/3" Korea Pixel Plus CMOS |
1/3" Sony Effio-E 4140 + Sony Ex-ViewII 672/673 CCD |
||
Total Pixels |
PAL:795(H)×596(V) NTSC:811(H)×508(V) |
PAL:1020(H)×596(V) NTSC:1020(H)×508(V) |
||
Effective Pixels |
PAL:752(H)×582(V) NTSC:768(H)×494(V) |
PAL:976(H)×582(V) NTSC:976(H)×494(V) |
||
Scanning System |
2:1 interlace |
|||
Synchronization |
Internal |
|||
Frequency |
H:15.625KHZ/V:50HZ |
|||
Horizontal Resolution |
Color:600TVL |
700TVL |
||
Min. Illumination |
Color:0.5Lux, B/W: 0.1Lux (IR Off) |
Color:0.1Lux, B/W: 0.05Lux |
||
S/N Ratio |
63.8 dB(AGC Off) |
≥52dB(AGC Off) |
||
Video Output |
CVBS:1.0Vp-p/75Ω composite |
|||
LENS |
||||
Focal Length |
8mm |
|||
Max.Aperture Ratio |
1:F1.6 |
|||
Angular Field of View |
D: 96.3°/H: 81.12°/V: 70.38° |
|||
Focus Control |
manual |
|||
Lens Type |
fixed iris |
|||
OPERATIONAL |
||||
Gama Correction |
R0.15 |
>R0.45 |
|
|
Electronic Shutter Speed |
PAL:1/50~1/100,000sec,NTSC:1/60~1/100,000sec |
|||
BLC |
Super Back Light Compensation |
|||
Distance |
50M(850nm IR LED:48ea) |
|||
IR Cut fliter |
Yes |
|||
OSD |
No Function |
built in |
|
|
Camera name |
ON/OFF |
|
||
Mirror |
Mirror |
|
||
WDR range |
52dB |
|
||
External Synchronization |
line-lock |
|
||
White Pixel Detection and Compensation |
Static and Dynamic |
|
||
Menu Language |
8 languages, Chinese/English/Japanese/German/France/Russian/Portuguese/Spanish |
|
||
Backlight |
ATR/OFF/BLC/HLC |
|
||
Privacy mask |
ON/OFF(8 presets) |
|
||
2DNR |
Adjustable |
|
||
AGC |
Auto/Manual |
|
||
White Balance |
ATW/Manual |
|
||
ENVIRONMENTAL |
||||
Operating Temperature/Humidity |
-10℃ - +50℃(-50°F~+122°F)/Less than 90% RH |
|||
ELECTRICAL |
||||
Input Voltage/Current |
DC12V +10% |
|||
Power Consumption |
1000mA |
|||
Adapter Requirement |
DC12V 1500mA |
|||
MECHANICAL |
||||
Color/Material |
silver/ Aluminium alloy |
|||
Bracket |
All-Oriented Bracket |
Competitive Advantage:
Color metal dome, high quality
SUNCHAN Advantage
Application:
Outdoor, IP66 protect level, available work environment like school, park, shop etc.
