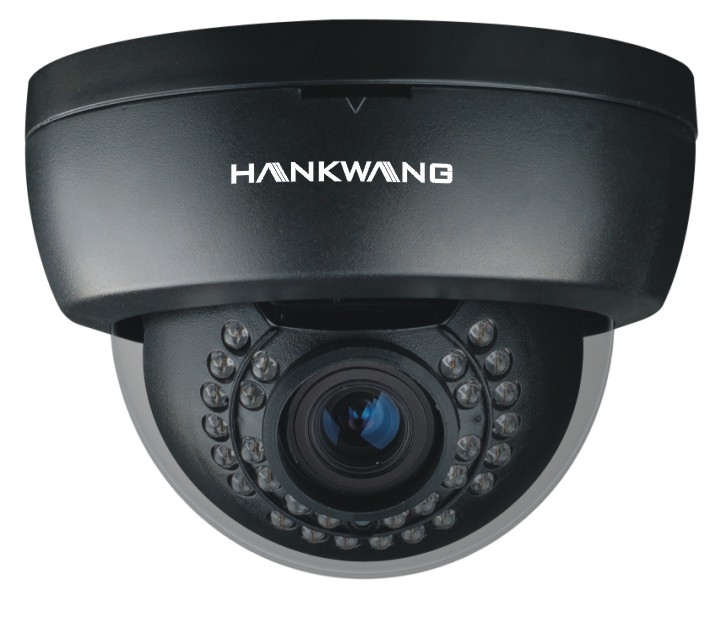

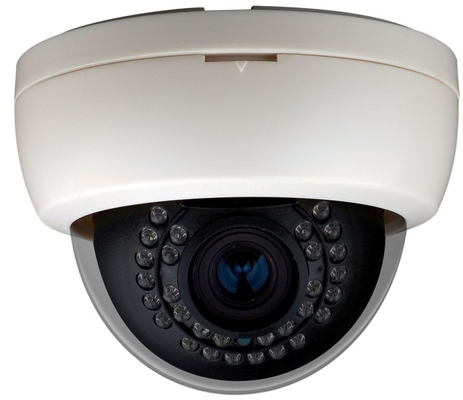

Features: | Weatherproof/High Definition/Wall Mount Supported/Real Time Transmission | Product Name: | Color CCD Camera |
---|---|---|---|
High Resolution: | 700TV Lines | Image Sensor: | 1/3” Sony 960H Exview CCD |
Minimum Illumination: | Color:0.3Lux, BW:0.1lux | Waterproof Level: | IP66 |
High Light: | ir digital color ccd camera,outdoor CCD camera |
Main features:
1.1/3” Sony 960H Exview CCD
2.High Resolution:700TV Lines
3.Digital Wide Dynamic Range
4.2D+3D DNR,HLC,AGC
5.DIS(Digital Image Stabilizer)
6.Controlled by OSD menu
7.Intelligent motion detection
8.2.8-12mm /4-9mm varifocal lens(Option)
9.DC12V/Daul power voltage(Option)
Technical parameters:
Specifications | HKD-80530HVS(Effio-S) | |
Model | NTSC | PAL |
Imaging Sensor | 1/3” Sony 960H Exview CCD | |
Scanning System | 2:1 Interlace | |
Scanning Frequency | 15.734KHz(H), 59.94Hz(V) | 15.625KHz(H), 50Hz(V) |
Total number of pixels | 1108(H)x508(V) | 1108(H)x596(V) |
S/N Ratio | More than 50dB(AGC off) | |
Video Output | 1.0Vp-p(75ohm, composite) | |
Resolution | Max 700TV Lines in color @ HR 7 mode (750TV Lines in B/W @HR 7 mode) |
|
Min. Illumination | Color:0.3Lux, BW:0.1lux Color DSS:0.0005lux, BW DSS:0.0002lux, IR ON :0.00lux |
|
Exposure | Auto/Shutter PRI/Manual | |
White Balnace | ATW/One Push/ Manual / Indoor/ Outdoor/Auto | |
BLC | On / Off | |
AGC | Off/On(Max 30dB) | |
Shutter Speed | 1/60~1/100, 000sec | 1/50~1/100, 000sec |
Flickerless | On/Off | |
Brightness | 1~15 steps | |
DNR | On/Off/Manual | |
WDR | On/Off | |
HLC | On/Off | |
BLC | On/Off | |
E.Zoom | E-Zoom(Max x2~x32)/E-Pan/E-Tilt | |
Day&Night | Day/Night/Auto/Ext | |
Pivacy Mask | Off/16 positions | |
Chroma | Low/Mid/High | |
Motion Detection | On / Off (3 Zone Selectable) | |
Effect | Off/Negative/B/W | |
Communication | Baud Rate:2400/4800/9600/19200/38400/57600/115200 Protocol:VISCA/ Pelco - D & Pelco - P & VISCA |
|
Sharpness | 1~16 steps | |
OSD | Built-in | |
Lens | 2.8-12mm /4-9mm varifocal lens(Option) |
|
IR LEDs | 30pcs | |
Operating Temperature | (-10°C ~ + 50°C) | |
Supplied Voltage | DC12 ± 10% | |
Dimension | 134mmx134mmx97mm | |
Weight | 300g | |
Options | DC12V/Daul power voltage(Option) |
