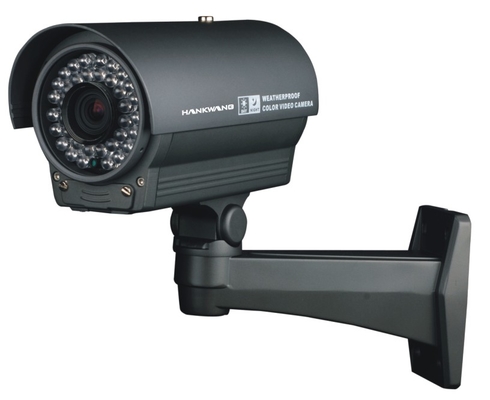

Indoor / Outdoor IR Bullet Camera ATW / AWC / Manual Day And Night Vision
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Features: | Weatherproof/High Definition/Wall Mount Supported/Real Time Transmission | Product Name: | IR Bullet Cameras |
|---|---|---|---|
| Min.Illumination: | 0.00 Lux ( IR ON ) | Waterproof Level: | IP66 |
| Resolution: | COLOR : 560 TV Lines (Typ.) | Sensor: | 1/3" Sony Color Super HAD CCD, 410K Pixels |
| High Light: | cctv bullet cameras,security cctv camera |
||
Indoor / Outdoor IR Bullet Camera ATW / AWC / Manual Day And Night Vision
Quick Detail:
1. Special Features:Weatherproof/High definition/Wall mount supported/Real time transmission
2. Waterproof Level: IP66
3. White Balance:Auto(indoor/outdoor)
4. Application:Family,office,residential,factories etc.
2. Waterproof Level: IP66
3. White Balance:Auto(indoor/outdoor)
4. Application:Family,office,residential,factories etc.
Main feature:
1. 1/3" Sony Color Super HAD CCD
2. High Resolution : 560 TV Lines
3. Sens-up X256
4. Day & Night, Privacy Function
5. Anti-Ghost DNR
6. SS-WDR (DRC)
7. Controlled by OSD Menu
Specifications :
| Specifications | HKR-30136HVN2IR | |||||||||||||||
| Image Sensor | 1/3" Sony Color Super HAD CCD, 410K Pixels | |||||||||||||||
| Total Pixels | N: 811(H) x 508 (V) / P: 795 (H) x 596 (V) | |||||||||||||||
| Effective Pixels | N; 768(H) x 494 (V) / P: 752 (H) x 582 (V) | |||||||||||||||
| Scanning System | N: 525 (H) Lines, 2:1 Interlaced / P :625 (H) Lines, 2:1 Interlaced | |||||||||||||||
| Synchronization | Internal | |||||||||||||||
| Resolution | COLOR : 560 TV Lines (Typ.) | |||||||||||||||
| Video Output | VBS : 1.0Vp-p, 75Ω composite | |||||||||||||||
| S/N Ratio (Y signal) | 52dB (AGC Off, Weight On) | |||||||||||||||
| Minimum Illumination | 0.00 lux ( IR ON ) | |||||||||||||||
| Backlight Compensation | BLC / D-WDR/ HLM / OFF Selectable | |||||||||||||||
| Day & Night Selection | COLOR / Black & White / EXT | |||||||||||||||
| Gain Control | LOW / MIDDLE / HIGH / OFF Selectable | |||||||||||||||
| White Balance | ATW1 / ATW2 / AWC / Manual | |||||||||||||||
| Outdoor (1, 800°K ~ 10, 500°K) | ||||||||||||||||
| Indoor (4, 500°K ~ 8, 500°K) | ||||||||||||||||
| Electronic Shutter Speed | N : 1/60 sec ~ 1/120, 000 sec / P :1/50 sec ~ 1/120, 000 sec | |||||||||||||||
| Sense-Up | ON / OFF (Selectable Limit x2 ~ x256) | |||||||||||||||
| OSD | Built-in | |||||||||||||||
| Motion Detection | ON(16x12 grid) / OFF | |||||||||||||||
| IRIS Control | DC | |||||||||||||||
| Lens Shading | / | |||||||||||||||
| DNR | ON (0 ~ 32 Level Adjustable) | |||||||||||||||
| Privacy | ON / OFF (8 Zone) | |||||||||||||||
| Mirror (H-REV) | ON / OFF | |||||||||||||||
| Flip (V-REV) | ON / OFF | |||||||||||||||
| STILL | ON / OFF | |||||||||||||||
| Sharpness | ON / OFF (Level Adjustable) | |||||||||||||||
| Saturation | ON / OFF (Level Adjustable) | |||||||||||||||
| Digital Zoom | ON (x1 ~ x256) / OFF | |||||||||||||||
| Parking Line | / | |||||||||||||||
| Communication | / | |||||||||||||||
| Blemish Compensation | 128 points | |||||||||||||||
| Lens | 4-9mm auto iris Korean lens | |||||||||||||||
| IR LED | 36pcs | |||||||||||||||
| Operating Temp. | -10℃ ~ +50℃ [14°F ~ 122°F] | |||||||||||||||
| Operating Humidity | 30 ~ 80% RH | |||||||||||||||
| Power Source | DC 12V ± 10%, Max. 2.0W | |||||||||||||||
| Dimensions | 303mmX102mmX231mm | |||||||||||||||
| Weight | 1500 | |||||||||||||||
| IR-CUT filter | Built-in | |||||||||||||||
DIMENSIONS
Installation system
