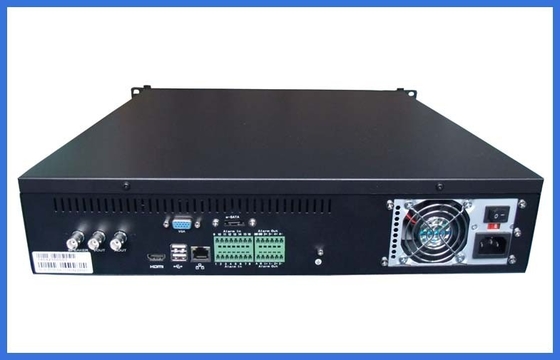

Digital wireless 32 Channel NVR Network Video Recorder Motion detection

large.img.alt
small.img.alt

Large Image :  Digital wireless 32 Channel NVR Network Video Recorder Motion detection Get Best Price

Product Details:
Place of Origin: China
Brand Name: Zhibosen
Certification: CC,CE,FC,ROSH
Model Number: NVR-8332
Payment & Shipping Terms:
Payment Terms: L/C,T/T,Paypal
Detailed Product Description
High Light:

network digital video recorder

,

security video recorder





Digital wireless 32 Channel NVR Network Video Recorder Motion detection





Quick Detail:





1. Model Number: NVR-8332

2. Brand Name: ZHIBOSEN

3. Type: NVR Network Video Recorder

4. Channel: 32 channel

5. RJ45 connect: 1 pcs

6. VGA connect: 1 pcs

7. HDMI connect: 1 pcs

8. USB connect: 2 pcs USB 2.0

9. HDD: Support 9pcs 4TB SATA HDD

9. Place of Origin: Guangdong China

10. Gross Weight: 10.32kg

11. Package Size: 560x560x175mm





Description:





1. H.264 Main Profile compression standard , a higher compression ratio , better image quality.
2. Can be connected to the network camera , network speed dome ; support multiple versions Onvif agreement.
3. Compatible with mainstream brand network cameras.
4. VGA, HDMI, CVBS-D1 synchronous output , maximum resolution up to 1080P?
5. The preview screen can be freely exchanged , image position changes , physical address change, to facilitate construction ;
6. 32 bit color graphics main menu , a list of menu structure, convenient and simple to operate.
7. Fixed 4 times digital zoom , enlarge the image can easily drag ( preview , playback , CMS)
8. A powerful capture function ( local , IE, CMS, alert correlation ) .
9. Video playback time column shows the type of video color representation , quick and easy retrieval of video data .
10. Can direct playback of video clips backup data fragment data .
11. Video backup can occur based on the time and length of time to backup, backup can be accurate to the second .
12. U-disk backup files can be played back directly on the host queries , provide more convenience to playback the backup file.
13. Equipped with 3G, WIFI wireless connectivity ( when required customization )
14. Standard resolution , according to the display device to adjust the resolution , give full play to the effect of the display image .
15. The wording of the order of the hard disk , the track began to write data from zero encountered bad sectors automatically skipped to avoid bad sectors , said after the file system crashes, hard drive to improve efficiency.
16. Can be directly controlled ISP parameters on the front IPC.
17. Support for disk SMART, namely: self-testing , analysis and reporting techniques, including ( operation heads, platters, motors, circuits , history and values ​​of the default security analysis and comparison ) .
18. Supports a variety of playback modes , fast forward , slow motion , rewind and so on , up to 16x fast forward and rewind, supports 1 / 8 speed slow .
19. When access to the audio , you can specify a channel to play audio without the overscan after playing the audio channel .




Applications:





Applies to family, community, roads, warehouses, underground parking, bar, schools, factories, companies, police stations, banks and other institutions.





Specifications :







Operating system  Embedded LINUX operating system
Processor  High-performance dual-core Cortex A9 processor
Encoding  Standard H.264
Dual-stream  Each channel can be set, range (128k ~ 12Mbps)
Frame Rate  NTSC System : 30 frames / sec ; PAL System : 25 frames / sec.
Resolution  1080P (1920 × 1080) / 720P (1280 × 720) / 960P (1280x960)
ISP Parameters  Direct control of the front end of the IPC ISP parameters ( iris , gain, white balance , 3D noise reduction, wide dynamic range , image mirroring, day and night , etc. )
Image Playback Quality  4-way simultaneous playback resolution of the main stream
Video mode  Manual / Timer / Motion detection / alarm sensor
Backup  U disk , SD card , USB mobile hard drives ( maximum 2TB), USB burner , network storage and backup
Operation  Mouse, remote control, front panel buttons
Recordings are saved  Local hard drive, remote video
Audio Output  RCAx1
Video Output  (VGAx1, HDMIx1, 1080P), CVBSx1 (D1)
Network Interface  16 / 25 Road, a Gigabit Ethernet port , 32 /36 Road / 48 Road, two Gigabit Ethernet ports, 10/100/1000M adaptive mode
RS485 interface  Duplex standard 485 interface, support for multiple PTZ protocols , supports keyboard control PTZ joystick
USB Interface  Two USB 2.0 ports ( 1 front panel , a rear tailgate )
Alarm Input  16
Alarm Output  4
Wireless Interface  3G, WIFI ( when you need to customize )
Maximum capacity  Each interface supports 9pcs maximum capacity of 4TB hard drive
Remote monitoring  Support IE ​​browser , smartphones , CMS access Android smart phones
Power supply  ATX110-220V 250W 50-60Hz
Power Consumption  ≤ 30W ( bare metal )
Operating Temperature  -10degree ~ +60 degree
Humidity  10% -90 %
Size  Machine : 440mm × 450mm × 90mm
With packaging : 560mm × 560mm × 175mm
Weight (without HDD) NW : 8.24Kg; including packaging : 10.32Kg





Competitive advantages:





good price, reliable quality, guarantee of delivery, best services
