Product Details:
Payment & Shipping Terms:
|
Features: | Weatherproof/High Definition/Wall Mount Supported/Real Time Transmission | Product Name: | Color CCD Camera |
---|---|---|---|
High Resolution: | 560 TV Lines | Image Sensor: | 1/3 SONY CCD |
Minimum Illumination: | 0.0001 Lux / F1.2 (Sens-up On) | Waterproof Level: | IP66 |
High Light: | ir digital color ccd camera,color ccd camera |

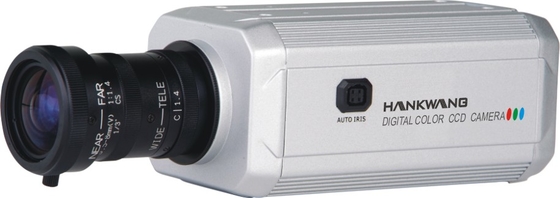

Digital Sony Color CCD Cameras 0.15 Lux AGC Internal Sync With 520TV Lines
Specification
Model | HKS-202HVA |
Image Sensor | 1/3 SONY CCD |
Effective Pixels | NTSC : 768 (H) x 494 (V) |
PAL : 752 (H) x 582 (V) | |
Horizontal Resolution | 520TV Lines |
Sync System | Internal |
Scanning System | 2:1 Interlaced NTSC 525 LinesPAL 625 Lines |
Video Output | 1.0Vp-p Composite. 75 Ohms |
S/N Ratio | More than 48 dB |
Min.Illumination | 0.15Lux / F1.2 |
Back Light Compensation | Auto |
AGC Control | Auto |
White Balance | Auto |
Gamma Correction | r=0.45 |
Electronic Shutter Time | NTSC : 1/60-1/100, 000 sec |
PAL : 1/50-1/100, 000 sec | |
Led | No |
OSD | No |
Lens | C / CS mount |
Operating temperature | - 10℃ ~ 50℃ |
Power Supply | DC 12V |
Dimensions | 122*56*64 mm |
Weight | 360g |
