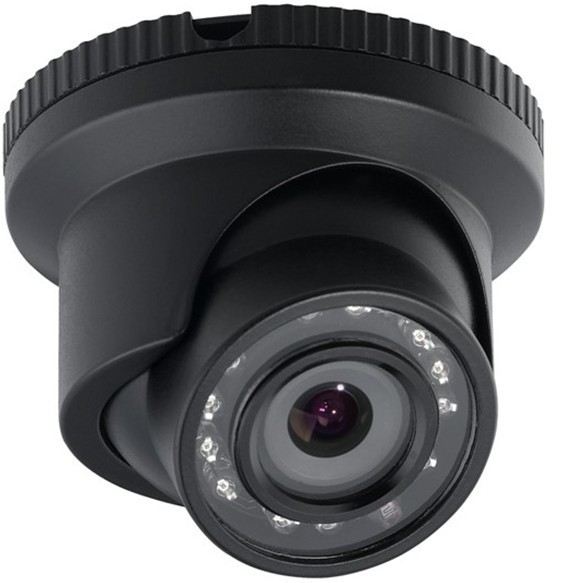

CCD Dome HD CCTV Cameras , Infrared CCTV Camera BS-SPN670MD
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | high definition cctv camera,dome cctv camera |
||
|---|---|---|---|
CCD Dome HD CCTV Cameras , Infrared CCTV Camera BS-SPN670MD
Specifications:
|
Model |
BS-SPN670MD |
|
|
Filter |
Double Layers Crystal |
|
|
Sensor |
super hard CCD ‖ |
|
|
Signal |
PAL |
NTSC |
|
Pixels |
752(H)×596(V) 570K |
689(H)×496(V) 480K |
|
Line |
600TV |
|
|
Illumination |
0Lux / IR ON |
|
|
Lens |
F=3.6mm, f=6/8mm optional |
|
|
IR LED |
12pcs Φ5mm High Power IR LED |
|
|
IR Distance |
10 Meter |
|
|
Vertical |
50Hz |
60Hz |
|
Horizontal |
15.625KHz |
15.734KHz |
|
Clock |
28.375MHz |
28.636MHz |
|
Scanning |
2:1 Interlace |
|
|
S.N.R |
≥50dB |
|
|
E.S |
1/50-1/100,000s |
1/60-1/100,000s |
|
W.B |
Auto Tracking |
|
|
B.L.C |
ON |
|
|
A.G.C |
ON |
|
|
Gamma |
0.45 |
|
|
Video Output |
1Vp-p, 75Ω |
|
|
IP Rating |
No |
|
|
Power |
DC/9-18V |
|
|
Volume Weight |
0.3kg |
|
Description:
* SONY super hard CCD ‖,Effo 600tvl, high resolution
* 0.1 LUX /color illumination, 0 LUX IR ON
* 12 X D5 max power 860Nm IR LED, 10meters IR distance
* Plastic casing, black color shell
* specially designed bus installation
* F=3.6mm lens, f=6/8mm optional
* 9-18V wide range power input
* Cables control OSD optional
