720P Motion Detection POE H.264 IP CCTV Camera Mobile Phone View , 30fps

I'm Online Chat Now
Certification
China China Camera Online Market certification
China China Camera Online Market certification
We sincerely appreciate all the time and efforts during these years by improving your products, for your kind customer service.

—— Fabio

The products we order are working very well,I will place more orders with this company.

—— Mario

Highly recommended! it is a really trustworth and reliable vendor, good job!Hope to do a longterm business!

—— Mac Jordon

Good company, high quality cameras,good communication skills!

—— Garry Brian

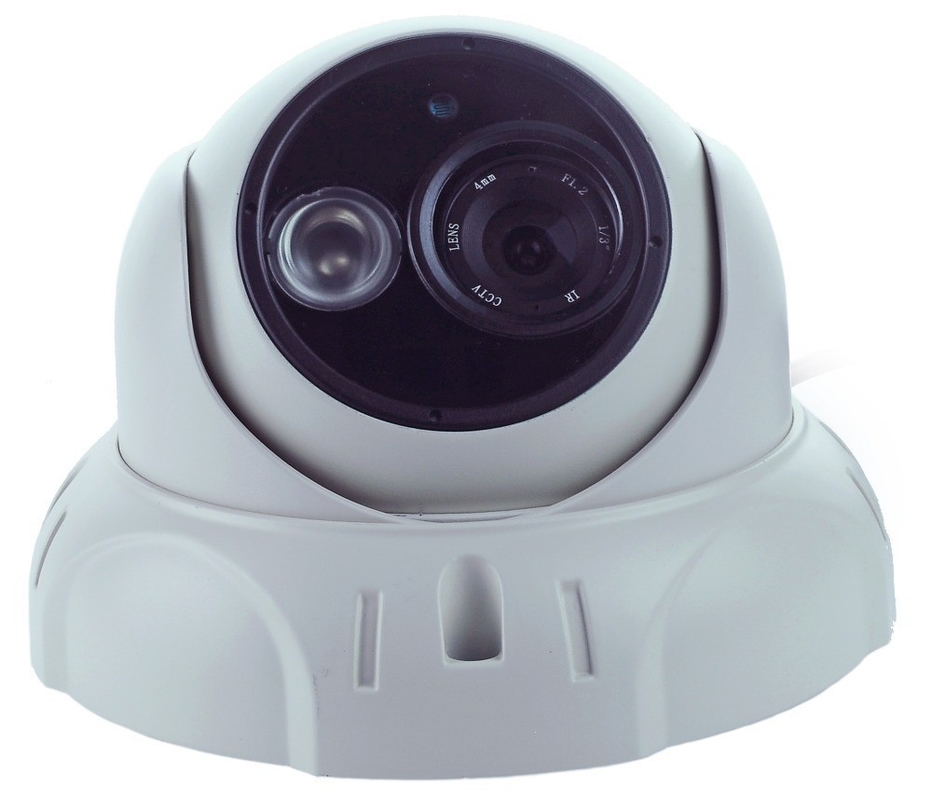

720P Motion Detection POE H.264 IP CCTV Camera Mobile Phone View , 30fps

large.img.alt
small.img.alt

Large Image :  720P Motion Detection POE H.264 IP CCTV Camera Mobile Phone View , 30fps Get Best Price

Product Details:
Place of Origin: China
Brand Name: DEBFFENG
Certification: ISO
Model Number: GR-ND6333VL
Type: Digital Camera
Style: Dome Camera
Sensor: CMOS
Technology: NetWork
Delivery Detail: 3-15 days
Lens: Varifocal lens 4-9mm
P2P: optional
Special Features: P2P, POE
Video format: H.264
POE: optional
Remote viewing: CMS,web browsers,Mobile phone
Memory card: 32G TF Card Max.
IR Range: 30-40M
Pixels/Frame: 5MP@10fps, 720P@30fps
Protocol: Onvif
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: According to customer’s requirment
Delivery Time: 7-15days
Payment Terms: L/C,T/T,Paypal
Detailed Product Description
High Light:

dome cctv camera

,

hd cctv cameras

720P Motion Detection POE H.264 IP CCTV Camera Mobile Phone View , 30fps





Specifications



*ip cctv cameras
*POE, P2P
*5 megapixel
*Web browsers&mobile phone view
*Motion detection email alarm



ONVIF,5mp p2p poe,motion detection,audio email alarm,two way talkback,NTP,DDNS,DNS,ip cctv cameras







  1. 5 megapixel vandalproof dome ip camera

  2. P2P,PoE optional

  3. 3-axis rotating internal bracket

  4. With IR-Cut filter

  5. AWB,AE, AGC,AWB,etc.

  6. Built-in mini TF memory card slot, support 32G Max.

  7. Two-way audio talkback.

  8. Privacy mask, motion detection, sensor alarm, email alert .

  9. H.264 compression format.

  10. Multi-user remote viewing via CMS, Web browsers, IOS & Android mobile phones.

  11. Automatic connection recovery after power failure or network interruption.

  12. HTTP,TCP/IP,UDP,FTP,SMTP,PPPoE,DDNS,DNS,DHCP,NTP,RTSP,UPNP,etc.







Model No.

GR-ND2333VE

GR-ND2333VL

GR-ND4333VW

GR-ND6333VL

General Function

Feature

Lite version

Low Illumination

Wide Dynamic Range

HD-Low Illumination

CMOS Type

Aptina Imaging CMOS

Aptina Imaging CMOS

Aptina Imaging CMOS

CMOS Model

1/3″130 Mega Pixel

1/3″300 Mega Pixel

1/2.5″500MP

HD Output

960P:1280×960P

1080P:2048×1536P

1080P:2560×1920P

Image Adjustable

720P:1280×720P

720P:1280×720P

720P:1280×720P



D1:640×480

D1:640×480

D1:640×480

Illumination

Color: 0.1Lux

BW:0.01Lux(F1.2,AGC ON)

Color:0.6Lux

BW:0.08Lux(F1.2,AGC ON)

IR Distance

40M(42pcs black IR led)

Shutter Speed

1/60Sec~ 1/100,000Sec,Shutter Speed Adjustable

Lens

Standard 4-9mm(F1.2/M12 Mount)Mega HD Lens

Exposure Control

DSP Auto Adjust

AGC & WB

AGC:Auto(high, media, low )    White Balance:Auto,Close

S/N Ratio

≥50dB

Network function

Network Steadiness

Auto Reconnect, Register, UPNP, HB Display, Synchronization

Support

Onvif2.0,

PPPOE,DHCP,TCP/IP,HTTP,UDP,RTP/RTCP,RTSP,UPNP,

SMTP,FTP,NTP,DDNS,DNS

Agreement

Dual Stream

Dual Stream Transfer(H.264)CBR/VBR Adjustable

Main Stream(1M~8Mbps)With Local Skim, SD Card etc.

Sub-Stream(0.5MK~2Mbps)With Network Transfer.

Upgrade maintenance

Support Remote Upgrade, With Password Protect.

Wireless

Non

Charge for optional,

Adapting WIFI and P2P Intelligence Mobile Phone Visit

Special function

Optional Function

Non

Charge for optional: POE and TF card storage

Mouse Zoom

Click Any Rectangle Area And Zoom In or Zoom Out On the Image By Mouse

4-Axis Adjustment

Built In 4-Axis Bracket, Adjust the Surveillance Angle at Any Position Easily

Vandal Resistant

High Strength Aluminium Casting Alloy,

Acrylic Gauge Cover

Flush Mount

Adopt Flush Mount, More Secluded, Artistic, Safety

Waterproof Grade

Constant Force Soft Plug at Fitting Up Joint, IP66

Intelligent Alarm

Motion Detect,Video Shelter,I/O Alarm for Video Lost,

IP Address Conflict, Store Abnormal.

Video efficiency

Effective Pixel

1280*720

1280*1080

Video Frame Rate

50Hz/60Hz: 25fps,30fps,50fps,60fps etc

Image Capture

JPEG for Local Storage

Image Setting

Saturation, Luminance, Contrast Ratio Adjustable Through Client or IE.

Image rolling-over

Level Transposition, Turn Up-Side Down, Easy for Install & Adjust.

Audio

Audio Encoding

Non

With G.726/G.722/G.711 Standard Code,

64Kbps Transfer Speed

Audio Function

Non

Audio Broadcast Audi playback

Mount Standard

Power Mount

DC Female Connector,5.5×2.1mm

Network Mount

1ch 10M/100M Ethernet Mouth, RJ45 Mount

Video Output

1ch local analog output, BNC interface.

Alarm Mount

Non

1ch Alarm Input 1ch Alarm Output

Audio Mount

Non

1ch Audio input 1ch Audio Output

RS485 Mount

Non

1ch RS485 mount

Other standard

Working Enviroment

Enviroment Temperature-10°C~+60°C

Camera Temperature: 25°C~35°C

Humidity:<90%

Power Consumption

DC 12V±5% ,IR Led on: 5W

size(mm)

Products Size:155 × 155 × 130 mm

Carton Size:580 × 430 × 380 mm(22 CTN)

weight

Net Weight:1.45 Kg~1.55 Kg

Gross Weight:31.90 Kg~34.10 Kg
