Product Details:
Payment & Shipping Terms:
|
Horizontal Resolution: | 420TVL / 600TVL | Lens Focal Length: | 3.6mm |
---|---|---|---|
Focus Control: | Manual | Lens Type: | Fixed Iris |
Waterproof Rating: | IP66 | Distance: | 15M(850nm IR LED:23ea) |
High Light: | cctv bullet cameras,security cctv camera |
6mm Lens IR Bullet Camera 420TVL / 600TVL With 15M IR Distance
Quick details
Description:
Metal IR Bullet,IP66
420/600TVL Optional
3.6-6mm fixed lens optional
600TVL camera with IR Cut Filter
23pcs IR LED and 15M IR distance
600TVL camera with super backlight compensation function
Specifications:
Model: |
E-850M |
E-850SN |
|
VIDEO |
|||
Imaging Device |
1/3" Korea Pixel Plus CMOS |
1/3" Sony 3142 DSP + Sony Super HADII 632/633 CCD |
|
Total Pixels |
PAL:795(H)×596(V) NTSC:811(H)×508(V) |
PAL:537(H)×597(V) NTSC:537(H)×505(V) |
|
Effective Pixels |
PAL:752(H)×582(V) NTSC:768(H)×494(V) |
PAL:512(H)×582(V) NTSC:512(H)×494(V) |
|
Scanning System |
2:1 interlace |
||
Synchronization |
Internal |
||
Frequency |
H:15.625KHZ/V:50HZ |
||
Horizontal Resolution |
Color:600TVL |
420TVL |
|
Min. Illumination |
Color:0.5Lux, B/W: 0.1Lux (IR Off) |
Color:0.05Lux, B/W: 0.01Lux (IR Off) |
|
S/N Ratio |
63.8 dB(AGC Off) |
≥48dB(AGC Off) |
|
Video Output |
CVBS:1.0Vp-p/75Ω composite |
||
LENS |
|||
Focal Length |
3.6mm |
||
Max.Aperture Ratio |
1:F1.6 |
||
Angular Field of View |
D:90°/H:68°/V:50° |
||
Focus Control |
manual |
||
Lens Type |
fixed iris |
||
OPERATIONAL |
|||
Gama Correction |
R0.15 |
R0.45 |
|
Electronic Shutter Speed |
PAL:1/50~1/100,000sec,NTSC:1/60~1/100,000sec |
||
BLC |
Super Back Light Compensation |
||
Distance |
15M(850nm IR LED:23ea) |
||
IR Cut fliter |
Yes |
NO |
|
ENVIRONMENTAL |
|||
Operating Temperature/Humidity |
-10℃ - +50℃(-50°F~+122°F)/Less than 90% RH |
||
ELECTRICAL |
|||
Input Voltage/Current |
DC12V +10% |
||
Power Consumption |
750mA |
||
Adapter Requirement |
DC12V 1000mA |
||
MECHANICAL |
|||
Color/Material |
black/ Aluminium alloy |
||
Bracket |
All-Oriented Bracket |
||
Dimensions(W×H×D) |
180.7×62×62mm |
||
Net Weight |
0.5kg |

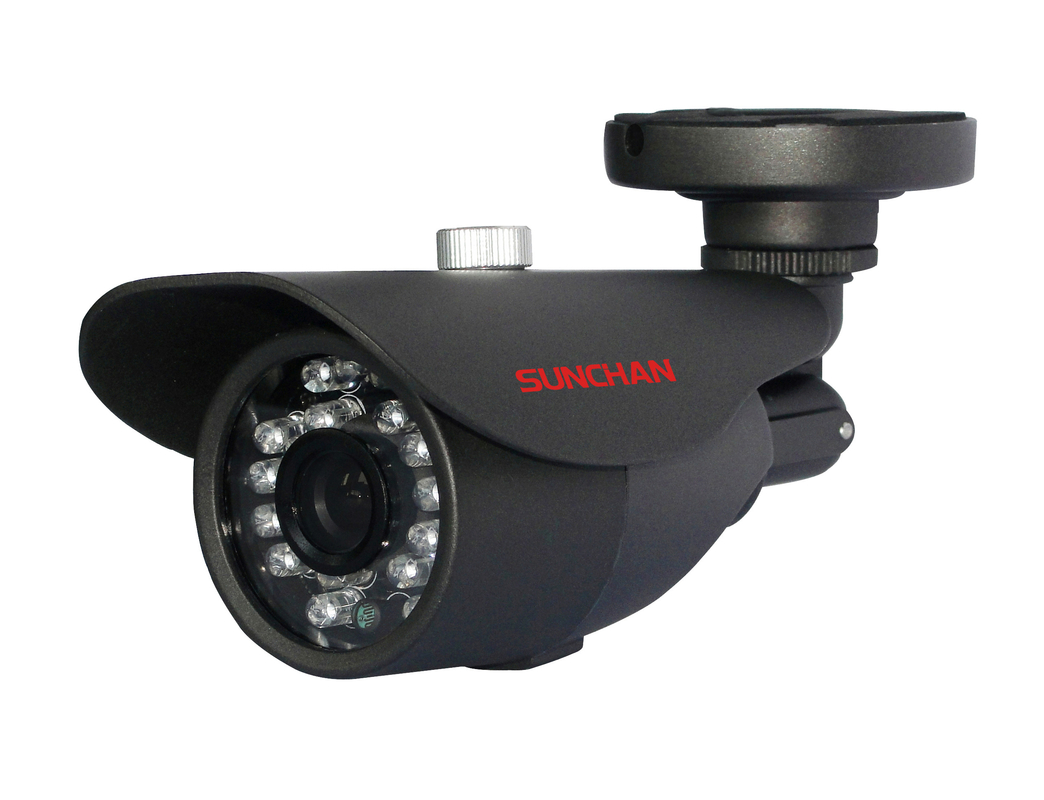

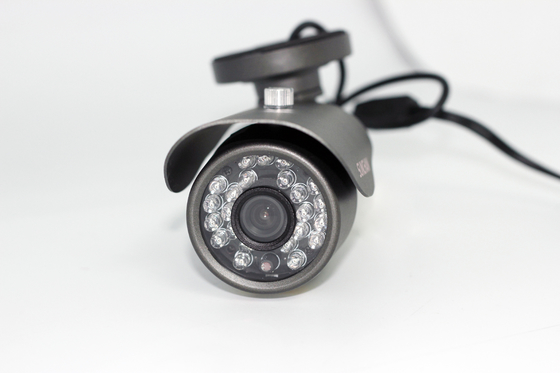

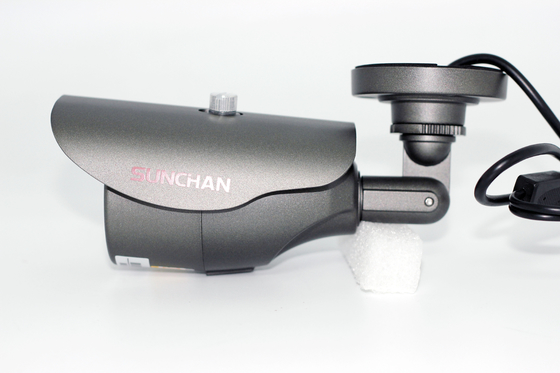

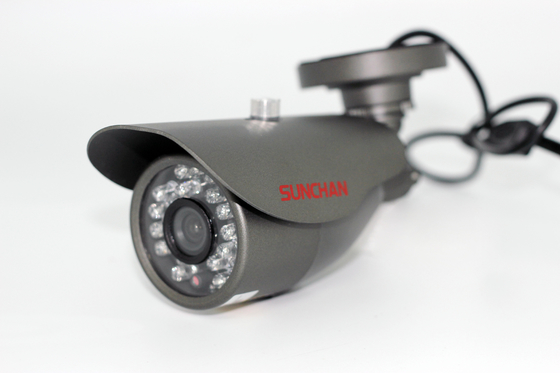

Product picture:
