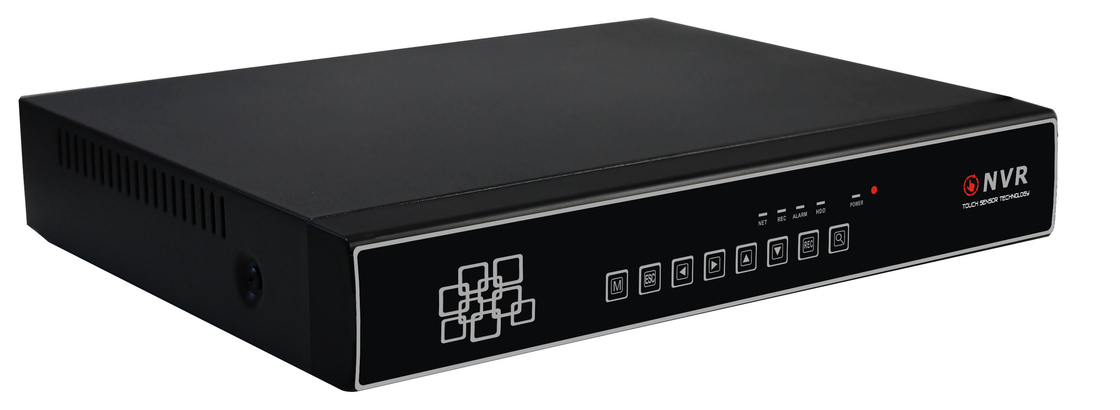

Onvif 4 channel Network Video Recorder 4*720P/960P/2*960P+2*1080P Realtime or Playback
Quick Detail:
1. 4CH*720P/960P/2CH*720/960+2CH*1080P
2. P2P function, a key to the Internet;
3. Support dual-stream;
4. Support WIFI connection
Description:
1. Supports ONVIF, can be widely connected to many well-known manufacturers of network cameras, network speed dome and network video servers.
2. Humanized design, easy to operate;
3. Supports a variety of mobile devices;
4. Gigabit Ethernet port (optional);
5. HD video, HD playback;
6. CMS centralized network management software, 256 free access.
Applications:
The hd ip security camera can be used in following both outdoor and indoor monitor environment:
Street, Garden, School, Family, Shop, Office, Building, Chain enterprise, Large factory machine room, Remote elder children nurse, Public buildings, Nobody dangerous environment monitor, Financial institution branch monitor, Traffic monitor and etc.
Specifications:
NVR | ||
System | Main Processor | High performance embedded microprocessor |
Operating system | Embedded LINUX OS | |
Video spec. | Video compression format | H.264 |
Display Image Resolution | 720P@30fps;960P@30fps;1080P@30fps | |
Playback Image Resolution | 720P@30fps;960P@30fps;1080P@30fps | |
Motion Detection | can setup 192(16×12)pcs motion detection area | |
Privacy Masking | depends on ipc | |
Audio spec. | Audio compression format | N/A |
two-way audio | N/A | |
Recording | Recording Mode | Manual Recording, Motion Detection Recording, Time Recording, Alarm Recording |
Recording storage | HDD,Network | |
Frame rate | 30 fps NTSC;25fps PAL | |
Recording Playback | Max suport 4ch 720P | |
Backup Mode | Support HDD,USB Flash Disk store & backup | |
Video | Network Video Input | 4ch |
Video output | 1ch VGA and 1ch HDMI | |
Audio | Audio Input | N/A |
Audio Output | N/A | |
Alarm | Alarm Input | N/A |
Alarm Output | N/A | |
Other | Network | 1x10/100Mbps,RJ45 port |
RS485 | Standard 485 port,support half-duplex, green terminal port | |
USB | 2 USB 2.0 ports | |
HDD | support 1 3TB SATA HDD inside | |
Power | DC +12V /4A | |
power consumption | 16W-18W(not include HDD and PoE) | |
Operation temperature | 0℃-+55℃ | |
Operation humidity | 10%-90% | |
Demension | 252*213*42mm(0.8u hight) | |
Weight | 1.5--1.8KG(not include HDD) |
Competitive advantages:
Leading and professional manufacturer in CCTV industry
7 years R&D and export experience
High Quality
Competitive and reasonable price
Best pre-sale, sale and after-sale service
24hours technical support
2 year warranty and lifetime maintenance
OEM & ODM
CE,FCC,RoHS,ISO9001-2008 passed
NVR Interface for Monitor :
NVR Central Monitoring Software :
Backboard of NVR
View by NVR Mobile Software
SuperMeye
We have 24hours free online demo for PC and Mobile Access . Pls contact us for P2P QRCode. Thank you !
