Waterproof Standard: | IP66 | Horizontal Resolution: | 420TVL, 700TVL |
---|---|---|---|
Lens Focal Length: | 3.6mm | Lens Focus Control: | Manual |
Lens Type: | Fixed Lens | IR Distance: | 15M(850nm IR LED:24ea) |
High Light: | cctv bullet cameras,security bullet cameras |

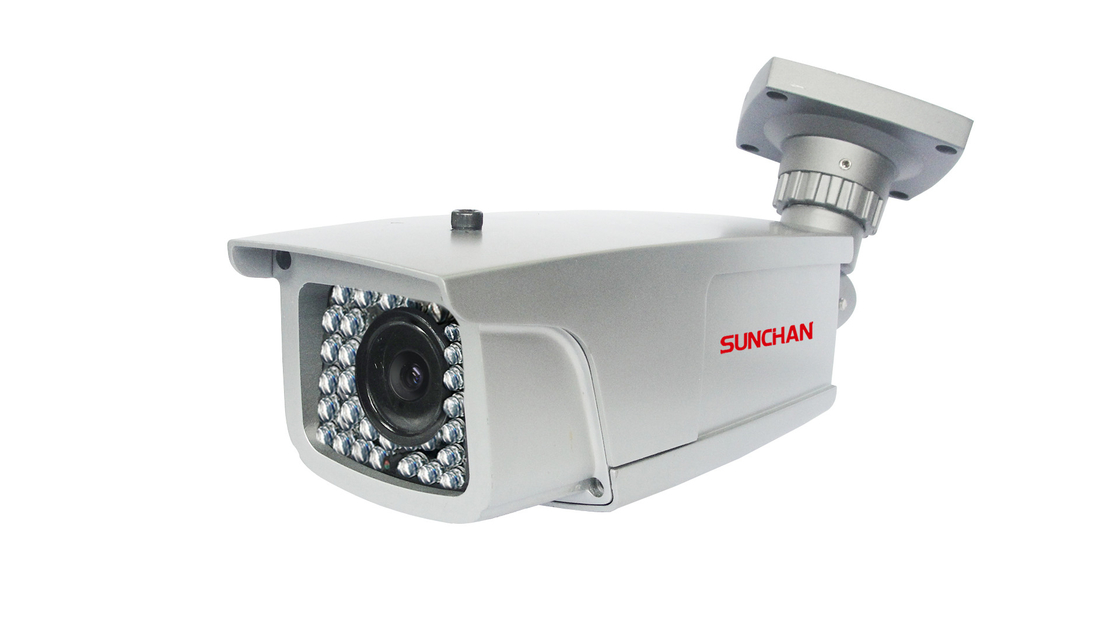

420TVL IP CCTV Cameras , Sony Effio CCD IR Bullet Camera
Quick details
Description:
Outdoor waterproof camera, private housing with 15M
Waterproof standard: IP66
Product picture:
Specifications:
Model: |
SC-2560SN |
SC-2560EF2 |
VIDEO |
||
Imaging Device |
1/3" Sony 3142 DSP + Sony Super HADII 632/633 CCD |
1/3" Sony Effio-E 4140 + Sony Ex-ViewII 672/673 CCD |
Total Pixels |
PAL:537(H)×597(V) NTSC:537(H)×505(V) |
PAL:1020(H)×596(V) NTSC:1020(H)×508(V) |
Effective Pixels |
PAL:512(H)×582(V) NTSC:512(H)×494(V) |
PAL:976(H)×582(V) NTSC:976(H)×494(V) |
Scanning System |
2:1 interlace |
|
Synchronization |
Internal |
|
Frequency |
H:15.625KHZ/V:50HZ |
|
Horizontal Resolution |
420TVL |
700TVL |
Min. Illumination |
Color:0.05Lux, B/W: 0.01Lux (IR Off) |
Color:0.1Lux, B/W: 0.05Lux |
S/N Ratio |
≥48dB(AGC Off) |
≥52dB(AGC Off) |
Video Output |
CVBS:1.0Vp-p/75Ω composite |
|
LENS |
||
Focal Length |
3.6mm |
|
Max.Aperture Ratio |
1:F1.6 |
|
Angular Field of View |
D: 96.3°/H: 81.12°/V: 70.38° |
|
Focus Control |
manual |
|
Lens Type |
Fixed lens |
|
OPERATIONAL |
||
Gama Correction |
R0.45 |
>R0.45 |
Electronic Shutter Speed |
PAL:1/50~1/100,000sec,NTSC:1/60~1/100,000sec |
|
Distance |
15M(850nm IR LED:24ea) |
|
OSD |
No Function |
built in |
Camera name |
ON/OFF |
|
Mirror |
Mirror |
|
WDR range |
52dB |
|
External Synchronization |
line-lock |
|
White Pixel Detection and Compensation |
Static and Dynamic |
|
Menu Language |
8 languages, Chinese/English/Japanese/German/France/Russian/Portuguese/Spanish |
|
Backlight |
ATR/OFF/BLC/HLC |
|
Privacy mask |
ON/OFF(8 presets) |
|
2DNR |
Adjustable |
|
AGC |
Auto/Manual |
|
White Balance |
ATW/Manual |
|
ENVIRONMENTAL |
||
Operating Temperature/Humidity |
-10℃ - +50℃(-50°F~+122°F)/Less than 90% RH |
|
ELECTRICAL |
||
Input Voltage/Current |
DC12V +10% |
|
Power Consumption |
600mA |
|
Adapter Requirement |
DC12V 1000mA |
|
MECHANICAL |
||
Color/Material |
silver/ Aluminium alloy |
|
Bracket |
All-Oriented Bracket |
|
Dimensions(W×H×D) |
228×75.5×73.6mm |
|
Net Weight |
0.9kg |
Applications:
Indoor, like office, warehouse, convenient store, bus
Outdoor, like school, parking lot
Competitive Advantage:
Color waterproof outdoor camera,high quality
Private housing
SUNCHAN Advantage
Application:
Outdoor, IP66 protect level, available work environment like school, park, shop etc.
Package pictures:
We can provide elegant and simply color package box match with diifferent size and style cameras.
