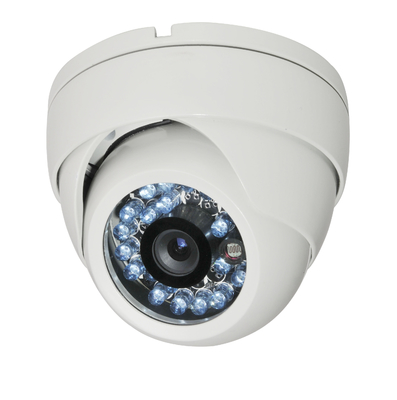

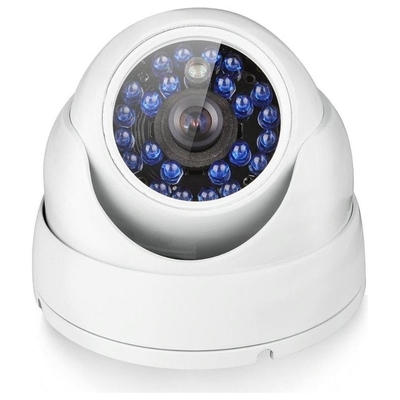

420TVL 1/4" Sharp Color CCD Camera PAL / NTSC With 3.6 / 6mm Lens

I'm Online Chat Now
Certification
China China Camera Online Market certification
China China Camera Online Market certification
We sincerely appreciate all the time and efforts during these years by improving your products, for your kind customer service.

—— Fabio

The products we order are working very well,I will place more orders with this company.

—— Mario

Highly recommended! it is a really trustworth and reliable vendor, good job!Hope to do a longterm business!

—— Mac Jordon

Good company, high quality cameras,good communication skills!

—— Garry Brian

420TVL 1/4" Sharp Color CCD Camera PAL / NTSC With 3.6 / 6mm Lens

large.img.alt
small.img.alt small.img.alt

Large Image :  420TVL 1/4" Sharp Color CCD Camera PAL / NTSC With 3.6 / 6mm Lens Get Best Price

Product Details:
Place of Origin: China
Brand Name: DEBFFENG
Certification: ISO
Type: Analog Camera
Style: Dome Camera
Sensor: CCD
Technology: Infrared
Color: Color-to-B/W
Signal System: PAL/NTSC
IR Distance: 25m
IR LED Lights: 24 PCS
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: According to customer’s requirment
Delivery Time: 7-15days
Payment Terms: L/C,T/T,Paypal
Detailed Product Description
High Light:

ir digital color ccd camera

,

color ccd camera

420TVL 1/4" Sharp Color CCD Camera PAL / NTSC With 3.6 / 6mm Lens



Specifications:


1.F=3.6/6mm 1/4"Sharp CCD;420TVL 0.5LUX, IR=25m,24pcsLED
2.PAL/NTSC
3.Plastic case for indoor use
4.OEM accept




Features:



• PWM function,intelligent IR illumination & power consumption is variable,

• IR distance 25M; Multiple languages for OSD menu, English, Spanish etc

• Support ambient light detection,IR Illumination On 1-15 grade selectable • Dome ID, baud rate, communication protocol can be set via the controller

• Supported Protocols : Pelco-D/P; Others on special request



Color

Color-to-B/W -

Image device

1/4"Sharp CCD

Resolution

420TVL

Signal system

PAL/NTSC

Effective pixels

PAL:752(H)x582(V);

NTSC:768(H)x494(V)

Min illumination

0.LUX IR ON

Sync system

Internal

Scanning mode

Intersectant 2:1

Scanning frequency

PAL:15.625KHZ(H)/50HZ(V) NTSC:15.750KHZ (H) /60HZ (V)

S/N Ration

48DB

Electric shutter

PAL:1/50-1/100 , 000 s NTSC:1/60-1/100 , 000 s

γ Correction

0.45

Video output

VBS1.0Vp-p (75Ω, Composite)

Lens

3.6/6 mm for selection

IR wave length

850nm

IR distance

25M

IR LED lights

D5X24PCS

Power

DC12V,2500mA

Casing

plastic

Size & Weight

127 x 91(H) mm,0.55kg, 36 pcs per carton

Working Condition

-20~+50°C & ≤ 95%RH
