25M IR Ip Security Camera Systems Of H.264 Onvif 2.0 1.3Megapixel
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Sensor: | 1/3" 1.3 Mega Pixel CMOS Sensor | Effective Pixel: | 1280×960 |
|---|---|---|---|
| Exposure Control: | Auto | Minimum Illumination: | Color: 0.05 Lux@F1.2,B&W:0.1Lux @ F1.6 (0 Lux With IR) |
| Lens: | CS Mount,standard:6mm, (12mm,16mm Optional) | IR Distance: | 25m |
| High Light: | network security camera,hd cctv cameras |
||
25M IR Ip Security Camera Systems Of H.264 Onvif 2.0 1.3Megapixel
Quick details
1.1/3" 1.3 Mega pixel CMOS sensor
2.Support Onvif 2.0 protocol
3.30pcs IR LEDs,with 25M IR Range
4.Lens:CS mount,standard:6mm, (12mm,16mm optional)
5.H.264/MPEG4 Video compression
6.Motion detection supported
7.1280X960 High resolution
Description:
- 1.3Mega pixel, high resolution
- 1280*960@25fps
- H.264/MPEG4 compression
- ONVIF2.0 protocol
- IR-CUT, auto day and night
- Built-in WEB SERVER, IE access
- Support DDNS,LAN and WAN access
- 30pcs ¢5 LED
- IR range: up to 25M
- IP65 rating
Specifications:
|
Model NO |
EPC-HD806AR1 |
|
|
Camera |
Sensor |
1/3" 1.3 Mega pixel CMOS sensor |
|
Effective Pixel |
1280×960 |
|
|
Exposure Control |
Auto |
|
|
Minimum Illumination |
Color: 0.05 Lux@F1.2,B&W:0.1Lux @ F1.6 (0 Lux with IR) |
|
|
Lens |
CS mount,standard:6mm, (12mm,16mm optional) |
|
|
Auto Iris |
N/A |
|
|
Electronic Shutter |
Automatic/manual (1/30 -1/4000 sec) |
|
|
S/N |
≥50dB |
|
|
AGC |
Auto |
|
|
White balance |
Auto |
|
|
Backlight compensation |
Auto |
|
|
Day and night system |
IR-CUT filter with auto switch |
|
|
IR Distance |
25m |
|
|
Compression |
Video Compression |
H.264/MPEG4 |
|
Compression Rate |
1Mbps～8Mbps,CBR/VBR |
|
|
Audio Compression |
Audio:G.711,Speak:G.722 |
|
|
Audio Rate |
64Kbps |
|
|
Image |
Max frame rate |
1280×960@25 fps ;704×576@ 25 fps , 352×288@25 fps |
|
Image adjustment |
Saturation, brightness, contrast adjust through CMS or IE |
|
|
Network |
Protocol |
TCP/IP,HTTP,DHCP,DNS,DDNS,FTP,NTP,PPPOE,RTSP,UDP,UPNP,SMTP,RTP |
|
Alarm |
Motion detective/ Area shield,I/O Alarm |
|
|
Motion detective |
Support |
|
|
Area shield |
Support |
|
|
Heartbeat detective |
Support |
|
|
Password protection |
Support |
|
|
Dual-stream |
1280×960@25fps ,704×576@15fps (optional) |
|
|
Remote upgrade and maintenance |
Support |
|
|
Interface |
communication interface |
1 RJ45 port 10M/100M Adaptive Ethernet front-end ports |
|
General |
Temp/Humidity |
-10℃～60℃/≤85%RH |
|
Power supply |
DC12V/2A |
|
|
Power |
<6W |
|
|
Size |
145×142.3×101 |
|
|
Weight |
0.5Kg |
|

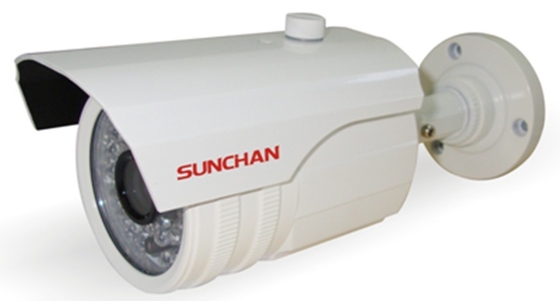

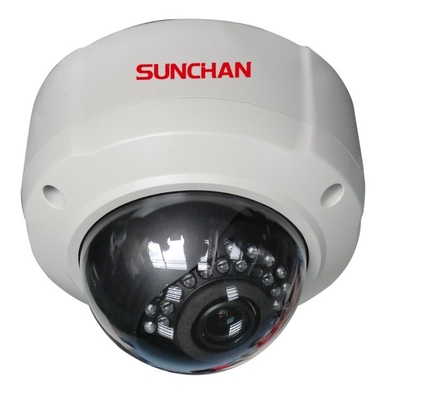

Product pictures:
