Product Details:
Payment & Shipping Terms:
|
Image Sensor: | 1/3" Progressive Scan CCD | IR Distance: | 30M-120M |
---|---|---|---|
Lens: | 18 X Optical ZOOM( | Protection Classification: | IP66 |
Frame Rate: | 1-30fps | Resolution: | 720P,D1, Half D1 |
High Light: | network ip security cameras,ip security cameras |

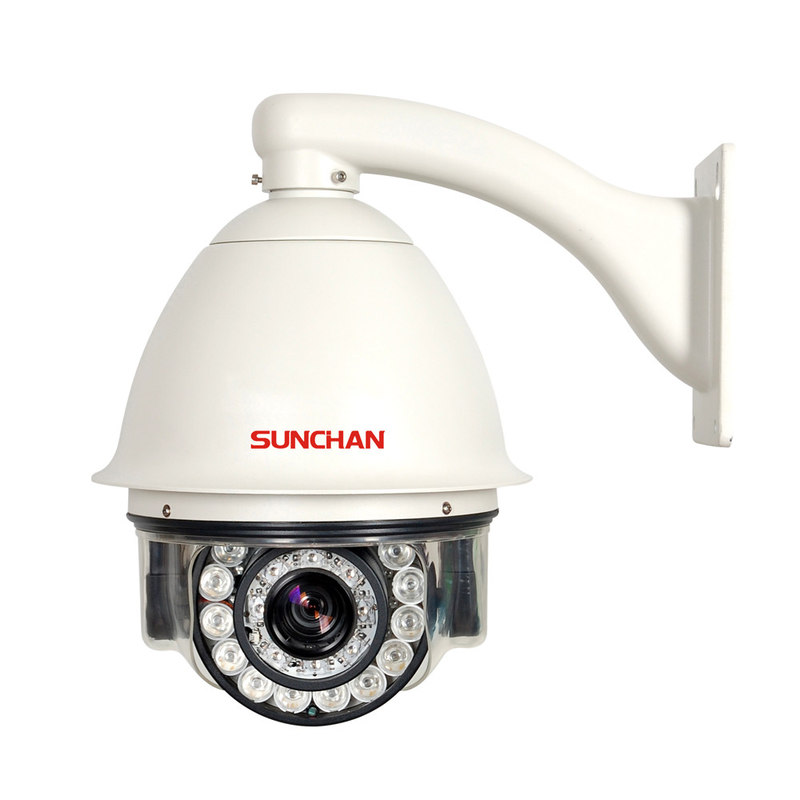

18X Optical ZOOM IP Network Dome Camera Security System IP66
Quick details
Description:
Specifications:
Model |
EPC-HS208DP2 |
|
IR Speed Dome IP Camera |
||
Image Sensor |
1/3" Progressive Scan CCD |
|
Scan System |
1:1 Progressive |
|
Effective Pixels |
1296(H)x966(V) /1280(H)x720(V) /1280(H)x960(V) |
|
Minimum Illumination |
1.8Lux@F1.6(Color); 0.02Lux@F1.6 (B/W) |
|
IR Distance |
30M-120M |
|
White Balance |
ATW/Manual |
|
Backlight Compensation |
ON/OFF |
|
Day/Night |
Auto |
|
Lens |
18 x Optical ZOOM(4.7-84.6mm); F=1.6(W)~F=2.8(T) |
|
Horizontal Viewing Angle |
55.2°(wide) - 3.2°(tele) |
|
Pan&Tilt |
Preset Speed: Pan: 0°-350°/sec, Tilt speed: 0.°-90°/sec Manual Control Speed: 0.1°-300°/sec, Tilt speed: 0.5°-90°/sec |
|
Preset and cruise |
255 preset position and 6 cruise position |
|
Protection Classification |
IP66 |
|
Frame Rate |
1~30fps |
|
Video /Audio |
||
Video Compression |
H.264/MJPEG |
|
Frame Rate |
1-30fps |
|
Resolution |
720P,D1, Half D1 |
|
Video Stream |
H.264, Bit-rate Range(1Mbps-16Mbps) |
|
Image Settings |
Brightness, contrast, saturation, hue, Exposal control, AES(1/2 to 1/4,000 sec.), AGC, AWB, BLC, Privacy mask, Motion Detection; |
|
Audio Compression |
G.711 |
|
Audio Stream |
Two-way audio, broadcast |
|
Network |
||
Ethernet |
10/100 Mbps Ethernet RJ-45 port |
|
Protocols |
TCP/IP,HTTP,DHCP,DNS,RTP/RTCP,PPPOE,FTP,SMTP,NTP,SNMP |
|
Security |
Multi-level user access with password protection |
|
System Integration |
||
IP Camera Hardware |
High performance CPU, Flash 8M, DRAM 128M, OS Built-in Linux |
|
View System requirement |
OS: Microsoft Windows 2000/2003/XP/Vista/Win7 |
|
Browser: Internet Explorer 6.0 or above |
||
Management Software |
FREE software for monitoring and recording, support 1-100 channels |
|
WEB Server |
Support WEB browser, remote config/update, replay, record |
|
Alarm port |
One D/I and one D/O for external sensor and alarm |
|
Alarm trigger |
Video lost, motion detection, external input |
|
Alarm Events |
File upload via FTP, Email; Notification via Email, and TCP; External output activation; Local recording; |
|
General |
||
Connectors |
RJ-45 10BASE-T/100BASE-TX, DC Power, Terminal block for 1 alarm input, 1output; Mic input headphone output, RS485 (PTZ), Alarm I/O |
|
Operation Conditions |
Temperature:-35℃ -60℃; Humidity:<90%RH |
|
Voltage |
AC12V/5A |
|
Consumption |
≤50W |
|
Weight |
3.8 KG |
|
Product Dimension (mm) |
Φ228×341 mm |
