High Light: | cctv speed dome camera,dome ip camera |
---|

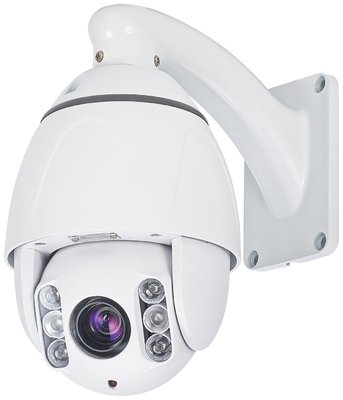

1080P 2.0MP HD 4 inch 16X Digital Zoom Onvif Outdoor Mini High Speed Dome Camera
Quick Detail:
1. 4" Outdoor IR mini high speed dome camera
2. Intelligent Function Default : Motion detection, Face Detection and Missing Objects Detection.
3. IR distance: 60M,6PCS Array LED
4. 16X HD Digital Zoom
5. Wall or pendant bracket optional DC12V
6. 2.0MP High Resolution
Description:
1. Standard H.264 compression
2. 1/2.5 inch 2.0 Megapixel CMOS sensor
3. 1080P@25FPS video frame rate
4. Multiple adjustable resolution with self-adapting technology
5. Supporting dual streaming level
6. Protocol -TCP/IP,HTTP, RTSP/FTP/PPPOE/DDNS/NTP/UPnP etc.
7. Remote view and management by IE and client software (CMS with 64CH).
8. Various recording modes-motion detection recording, alarm recording ,schedule recording and manual recording.
Applications:
The hd ip security camera can be used in following both outdoor and indoor monitor environment:
Street, Garden, School, Family, Shop, Office, Building, Chain enterprise, Large factory machine room, Remote elder children nurse, Public buildings, Nobody dangerous environment monitor, Financial institution branch monitor, Traffic monitor and etc.
Specifications:
|
Model |
|
Camera |
Pixel |
2.0 Mega Pixel, 1920*1080 |
Sensor |
1/2.5" 2.0MP |
|
Lens |
3.8~38mm |
|
Electronic shutter |
1/25s-1/30,000s |
|
Low Lux |
Color:0.6Lux@F1.2 B/W:0.08Lux@F1.2 |
|
Auto iris |
N/A |
|
ICR |
Support |
|
Video parameter |
Saturation, brightness, contrast ratio and color tone can be adjusted by customer end or IE explorer |
|
IR |
IR Properties |
Dual filter day / night: automatic switch, linkage switch |
IR Light |
36pcs IR LEDS, IR Distance: 20M |
|
Audio-video coding parameters |
Compression |
H.264 Main Profile@Level 3.0 / MJPEG optional |
Video bit rate |
0.1M-6Mbps, customized |
|
Bit stream type |
video stream |
|
Audio compress |
N/A |
|
Audio bit rate |
N/A |
|
Triple bit streams |
Support |
|
Image |
Video resolution |
2048*1536 |
Video flame rate |
PAL: 1-25 frames/second, NTSC: 1-30 frames/second |
|
Function |
PTZ |
N/A |
Heartbeat mechanism |
Support |
|
IP auto pop-out |
IP auto pop-out at customer end |
|
Password protection |
Multi-level protection on password |
|
Intellectual alarm |
Mobile detection, video shielding, video loss, network breakdown, abnormality in storage |
|
Basic functions |
One-key reset, password protection, watermark technology |
|
Interface |
Audio input |
N/A |
Video output |
N/A |
|
Network port |
1 pcs, RJ45 10M/100Mbps self-adaptable Ethernet port |
|
Serial port |
N/A |
|
Alarm input |
N/A |
|
Alarm output |
N/A |
|
Wireless network |
WIFI |
N/A |
Wireless encryption |
N/A |
|
Cell phone monitor |
Support |
|
3G network |
N/A |
|
others |
POE |
Optional |
Power supply |
DC12V/1A |
|
Power consumption |
<6W |
|
Working temp |
-10℃ ~ +55 ℃ |
|
Working humidity |
10 ~ 85% |
|
Weight |
1.5Kg |
Competitive advantages:
Leading and professional manufacturer in CCTV industry
7 years R&D and export experience
High Quality
Competitive and reasonable price
Best pre-sale, sale and after-sale service
24hours technical support
2 year warranty and lifetime maintenance
OEM & ODM
CE,FCC,RoHS,ISO9001-2008 passed
Porduct Detail :
1.IE Preview interface
2.View by Intelligent Software
Feactures of Our Camera
Face Detection
Missing Objects Detection
Motion Detection
Excellent Night vision
