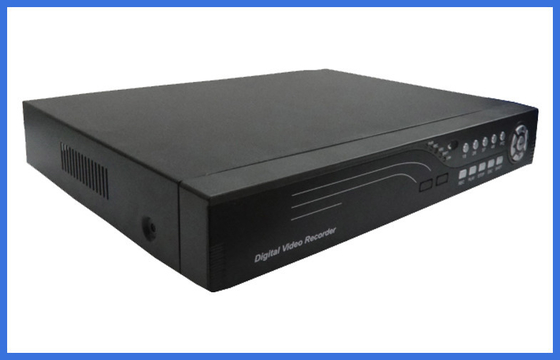

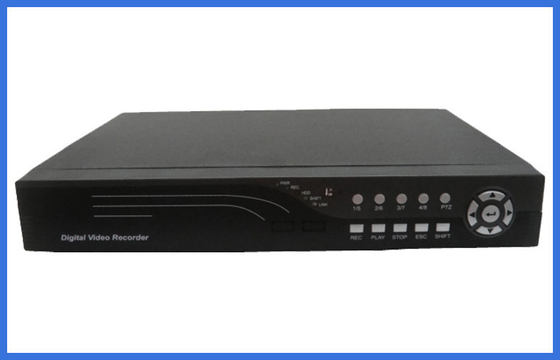

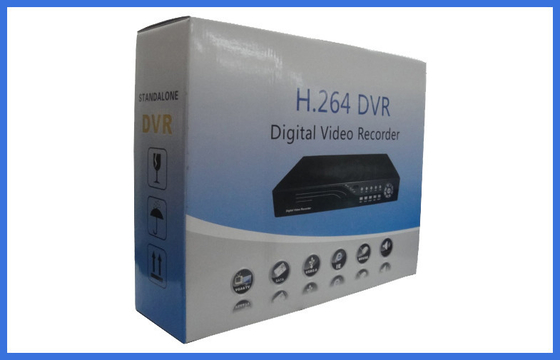

Realtime Dvr 8 Channel H.264 Digital Video Recorder Imitation Vista interface

large.img.alt
small.img.alt small.img.alt small.img.alt

Large Image :  Realtime Dvr 8 Channel H.264 Digital Video Recorder Imitation Vista interface Get Best Price

Product Details:
Place of Origin: China
Brand Name: Zhibosen
Certification: CC,CE,FC,ROSH
Model Number: DVR-7608H
Detailed Product Description
High Light:

dvr h 264 digital video recorder

,

network digital video recorder



dvr 8 Channel realtime h.264 digital video recorder 4 ch video/audio with VGA/HDMI/OSD/Alarm





Quick Detail:





1. Model Number: DVR-7608H

2. Brand Name: ZHIBOSEN

3. Type: DVR

4. Channel: 8 channel

5. Video input: 8 channel BNC

6. Audio input: 4 channel

7. HDD: Support 2 pcs 3T SATA

8. USB: 2 pcs USB2.0

9. Video connect:VGA/HDMI

10. Place of Origin: Guangdong China

11. Gross Weight: 2.3kg

12. Package Size: 255x225x45mm





Description:




1. Through cloud services, a variety of network penetration easy step you can achieve remote monitoring, which abandoned the various complicated network setup, simple, very convenient.
2. Compression algorithm upgrade to H.264 High Profile, advanced space-time filtering technology to stream representing a decrease of more than 30%
3. Full real-time video, support for full-time four-way D1,2 Road D1 + 6-channel CIF real-time, 16-channel CIF real-time, full real-time multi-channel synchronous playback.
4. Have two kinds of main and auxiliary stream while encoding, main stream local storage, ensuring high-definition image quality; auxiliary stream real-time network transmission, easy to solve bandwidth bottlenecks.
5. Support all types of mobile monitoring (iPhone, Windows Mobile, BlackBerry, Symbian, Android)
6. Supports multiple web browsers (IE, Chrome, Firefox, Safari).
7. Support 2 USB2.0 interface, stability, achieve USB mouse, backup, burn, upgrades and other operations.
8. Imitation Vista interface, similar to the WINDOWS operating style, powerful mouse right-click menu function, so surprisingly easy to get started.
9. Support TV, VGA and HDMI output simultaneously, including VGA and HDMI support 1024 * 768 Full HD output, to overturn the traditional display monitor.
10. Powerful network services (support DHCP, PPPOE, DNS, DDNS, EMAIL, IP search, etc.), perfect matching (WEB, Client, SDK), easy to achieve interoperability.
11. Support 3322 (Greek network), dyndns, oray (peanut shells), myq-see, such as Domain Name Service.
12. Twenty languages ​​(English, Finnish, French, German, Greek, Italian, Japanese, Polish, Portuguese, Russian, Spanish, Thai, Chinese, Traditional Chinese, Turkish), breaking national boundaries. Flexible display, free replacement boot interface.




Applications:





Applies to family, community, roads, warehouses, underground parking, bar, schools, factories, companies, police stations, banks and other institutions.





Specifications :



  model DVR-7604E DVR-7608H
syatem main processor Hi3520D
operating system embedded linux
system resources Simultaneous multi-channel real-time recording, playback, network operation, USB backup
interface user interface support 16-bit true color graphical menu interface and mouse operation
preview screen 1/4(take analog as an example) 1/4/8/9(take analog as an example)
video vdieo standards PAL(625line,50f/s);NTSC(525line,60f/s)
vdieo compression H.264(High Profile);JPEG capture
display quality

Monitor:D1;VGA,HDMI:HD

(support 1920*1080, 1280*720,1440*900,1280*1024, 1024*768,800*600)

play quality 1080P/720P/D1/HD1/CIF
encode capacity 4ch 960H real-time 8ch D1 real-time
decode capacity 4ch 960H real-time 1ch D1 real-time
hybrid mode

Only analog(DVR):

4*D1(capture)

/4*960H

Only analog(DVR):

8*HD1(capture)

/8*D1

/8*960H@12fps

analog+IP(HVR):

2*D+(1*1080P+1*720P)

Only IP(NVR):

9*D1

/8*960H /4*720P

/2*1080P/1*720P+7*D1/1*1080P+1*720P+2*D1

motion detect Zones: 192(16*12)detection zones,sensitivity: multi-level sensitivity (Only local channels)
audio audio compression G.711A
bidrectional talk supported
Record&playback record mode manual>alarm>motion detection>timing
local playback 1~9 ch playback,under analog mode 4*960H,up to 4ch playback(4*960H@25fps) 1~9ch playback,under analog mode 8*D1,up to 4ch playback(1*D1@25fps)
search mode Time/calendar/event/channel search
Storage&backup space occupation video:CIF 4~5G/ day*channel, D1 8~10G/ day*channel;960H 12G~20G/ day*channel
audio:691.2M/ day*channel
record storage HDD,network
backup mode Network backup,USB,USB Burn,SATA
interface video input 4ch BNC(1.0Vp-p,75Ω) 8ch BNC(1.0Vp-p,75Ω)
video output 1ch BNC(1.0Vp-p,75Ω),1ch VGA,1ch HDMI
Loop-through output not supported
audio input 4ch RCA(200-2800mV,30KΩ) 4ch RCA(200-2800mV,30KΩ,expand to 8ch)
audio output 1ch RCA(200-3000mV,5KΩ)
alarm input no(support 4ch expasion)
alarm output no(support 4ch expasion)
net interface RJ45 10M/100M
PTZ control One RS485,support multiple PTZ protocols
USB 2 USB ports
hard disk 2 SATA port(4T at most per one)
3G,WIFI 3G,WIFI(USB expansion)
others Power supply 12V/3A
Power consumption <15W(without HDD)
WorkingTemperature 0℃-+55℃
Working Humidity 10%-90%
Atmospheric pressure 86kpa-106kpa





Competitive advantages:





good price, reliable quality, guarantee of delivery, best services
