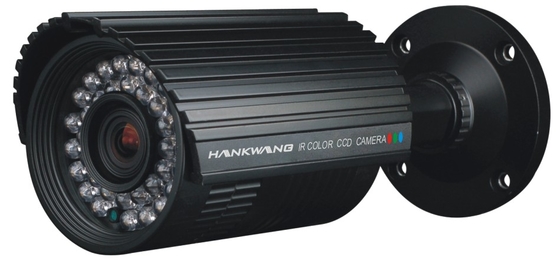

NTSC / PAL IR CUT filter DC 12V IR Bullet Camera CCTV Built In OSD
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Features: | Weatherproof/High Definition/Wall Mount Supported/Real Time Transmission | Product Name: | IR Bullet Cameras |
|---|---|---|---|
| Min.Illumination: | 0.001 Lux (IR ON) | Waterproof Level: | IP66 |
| Resolution: | 520TV Lines | Sensor: | 1/3 SONY CCD |
| High Light: | security bullet cameras,security cctv camera |
||
NTSC / PAL IR CUT filter DC 12V IR Bullet Camera CCTV Built In OSD
Quick Detail:
1. Special Features:Weatherproof/High definition/Wall mount supported/Real time transmission
2. Waterproof Level: IP66
3. White Balance:Auto(indoor/outdoor)
4. Application:Family,office,residential,factories etc.
2. Waterproof Level: IP66
3. White Balance:Auto(indoor/outdoor)
4. Application:Family,office,residential,factories etc.
Specification
| Model | HKR-30830HVA4IR |
| Image Sensor | 1/3 SONY CCD |
| Effective Pixels | NTSC : 768 (H) x 494 (V) |
| PAL : 752 (H) x 582 (V) | |
| Horizontal Resolution | 520TV Lines |
| Sync System | Internal |
| Scanning System | 2:1 Interlaced NTSC 525 LinesPAL 625 Lines |
| Video Output | 1.0Vp-p Composite. 75 Ohms |
| S/N Ratio | More than 48 dB |
| Min.Illumination | 0.001 Lux (IR ON) |
| Back Light Compensation | Auto |
| AGC Control | Auto |
| White Balance | Auto |
| Gamma Correction | r=0.45 |
| Electronic Shutter Time | NTSC : 1/60-1/100, 000 sec |
| PAL : 1/50-1/100, 000 sec | |
| Led | 30pcs |
| OSD | Built in |
| Lens | 2.8-11mm varifocal Lens |
| IR-CUT filter | Built in |
| Operating temperature | - 10℃ ～ 50℃ |
| Power Supply | DC 12V |
| Dimensions | 85*200*110 mm |
| Weight | 1000g |
