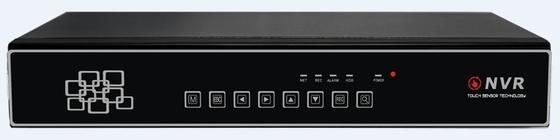

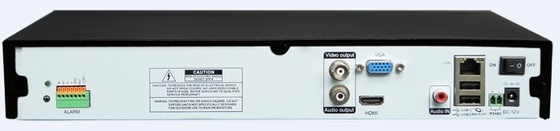

16ch 720p Realtime HD 2ch Network Video Recorders , Stand Alone Digital Video Recorder

Large Image : 16ch 720p Realtime HD 2ch Network Video Recorders , Stand Alone Digital Video Recorder Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	BOSCOM
Certification:	FCC, CE, ROHS
Model Number:	BSC-N6116AK

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Packaging Details:	335MM252MM50mm(1U height)
Delivery Time:	3 DAYS
Payment Terms:	L/C,T/T,Paypal

Contact Now

Detailed Product Description

Network Video Input:

9ch

Network Video Access Bandwidth:

64Mbps

Video Output:

1ch CVBS(BNC), 1ch VGA And 1ch HDMI

Audio Input:

9ch IPC Composite Audio

High Light:

network digital video recorder

network video recorder

16ch 720p Realtime HD 2ch Network Video Recorders , Stand Alone Digital Video Recorder

System	Main Processor	Hi3520A
System	Operating system	Embedded LINUX OS
Video spec.	Video compression format	H.264
	Display Image Resolution	720P@30fps;960P@30fps;1080P@30fps
	Playback Image Resolution	720P@30fps;960P@30fps;1080P@30fps
	Motion Detection	can setup 192(16×12)pcs motion detection area eachchanneland multi-level sensitivity(1-6 levels adjustable)
	Privacy Masking	depends on ipc
Audio spec.	Audio compression format	adpcm
Audio spec.	two-way audio	1ch
Recording	Recording Mode	Manual Recording, Motion Detection Recording, Time Recording, Alarm Recording,
	Recording storage	HDD,Network
	Frame rate	30 fps NTSC;25fps PAL
	Recording Playback	Max suport 4ch960P or 2ch 1080P synchronously playback
	Backup Mode	Support HDD,USB Flash Disk store & backup
Video	Network Video Input	9ch
	Network video access bandwidth	64Mbps
	Video output	1ch CVBS(BNC), 1ch VGA and 1ch HDMI
Audio	Audio Input	9ch IPC Composite Audio
Audio	Audio Output	1ch(support two-way audio)
Alarm	Alarm Input	4ch Alarm input
Alarm	Alarm Output	1ch Alarm Output
Other	Network	1x10/100Mbps,RJ45 port;
	RS485	Standard 485 port,support half-duplex, green terminal port
	USB	2 USB 2.0 ports
	HDD	support 2pcs SATA HDD inside
	Power	DC +12V /4A
	power consumption	16W-18W(not include HDD and PoE)
	Operation temperature	0℃－＋55℃
	Operation humidity	10%－90%
	Demension	335MM252MM50mm(1U height)
	Weight	2.0--2.12KG(not include HDD)
