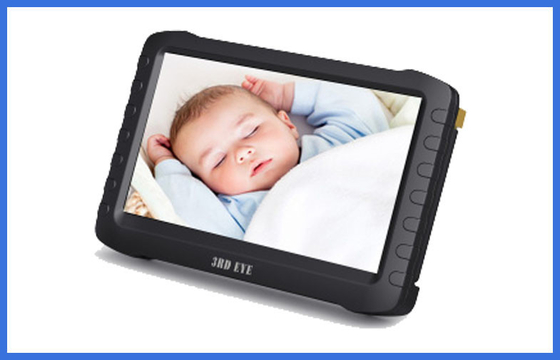

5 Inches Wireless Mini H.264 Digital Video Recorder Motion Detection , 8 channel dvr

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  5 Inches Wireless Mini H.264 Digital Video Recorder Motion Detection , 8 channel dvr Get Best Price

Product Details:
Place of Origin: China
Brand Name: Zhibosen
Certification: CC,CE,FC,ROSH
Model Number: ZBS-968H
Payment & Shipping Terms:
Payment Terms: L/C,T/T,Paypal
Detailed Product Description
High Light:

network video recorder

,

network digital video recorder

5 Inches Wireless Mini H.264 Digital Video Recorder Motion Detection , 8 channel dvr


Quick Detail:

1. Model Number: ZBS-968H
2. Brand Name: ZHIBOSEN
3.Type:Receiving: H.264 digital video recorder
4. Wireless Receiving: 5.8g or 2.4g 40 Channels
5. Sensitivity: -92db
6. AV-IN: Support 2.5mm AV-in Jack
7. Screen: HD 5-inch LCD
8. Resolution: 800x480
9. Storage: Support TF 1-32GB
10. Motion detect &take picture: Support
11. Loop seamless record: Support
12. Power supply: Li-battery 3200Mah
13. Gross Weight: 1kg
14. Package Size: 131 x 86 x 18mm

Description:

ZBS-968H is a new generation portable mini DVR developed by our company. It supports both wireless and wired cameras. Not only this, it adds new function of photo, motion detect, loop recording, power saving (auto shutdown, auto off-screen), etc. This DVR is the ideal choice for security & protection, evidence & investigation, like police, household, sports, automotive industry, shops, etc.. At the same time, with its stylish and high-end appearance,  it also becomes the fashion choice of leisure goods.

Applications:

Applies to family, community, roads, warehouses, underground parking, bar, schools, factories, companies, police stations, banks and other institutions.


Specifications :




Items             Value
Wireless ReceivingWireless freq.(1of 6 groups2.4GHz–8 channelsCH1: 2414MHz; CH2: 2432MHz; CH3: 2450MHz; CH4: 2468MHz.
CH5: 2490MHz; CH6: 2510MHz; CH7: 2390MHz; CH8: 2370MHz
Within 5.8G-A   8 channelsCH1: 5865MHz; CH2: 5845MHz; CH3: 5825MHz; CH4: 5805MHz.
CH5: 5785MHz; CH6: 5765MHz; CH7: 5745MHz; CH8: 5725MHz
Beyond 5.8G-B   8 channelsCH1: 5705MHz; CH2: 5685MHz; CH3: 5665MHz; CH4: 5645MHz.
CH5: 5885MHz; CH6: 5905MHz; CH7: 5925MHz; CH8: 5945MHz
Within 5.8G-C   8 channelsCH1: 5733MHz; CH2: 5752MHz; CH3: 5771MHz; CH4: 5790MHz.
CH5: 5809MHz; CH6: 5828MHz; CH7: 5847MHz; CH8: 5866MHz
Within 5.8G-D   7channels for FPVCH1: 5740MHz; CH2: 5760MHz; CH3: 5780MHz; CH4: 5800MHz.
CH5: 5820MHz; CH6: 5840MHz; CH7: 5860MHz; CH8: SPI
Beyond 5.8G-E   7 channels for FPVCH1: 5705MHz; CH2: 5685MHz; CH3: 5665MHz; CH4: 5645MHz.
CH5: 5885MHz; CH6: 5905MHz; CH7: 5925MHz; CH8: SPI
Sensitivity-92dB
AV INTV systemNTSC / PAL
Output voltage3.6-4.2 V
AV OUTTV systemNTSC / PAL
HD 5-inch LCD screenActive area108mm(W) X 64.8mm(H)
Resolution800 X 480 Pixel
Luminance for LCM200 cd/square metre
VideoResolution720*576 / 720*480
Video compressMPEG-AVI   30fps
Play formatMPEG-AVI
AudioFrequency20HZ-20KHz stereo
Earphone OutputLeft: 20MW+ right 20mW [16O](suit to largest volume)
Speaker1W
PhotoFormatJPG/JPEG
StorageExternal SD cardTF card 1GB-32GB(optional)
32GB recording time10-32 hours
1GB photos15625pcs
Operating systemPCWindows & Mac OS
PortUSB 2.0
LanguageMultiple
PowerVoltageDC 5V
Current(receiving mode)660MA
Current( recording mode)680MA
Current(recording with off-screen mode)340MA
AC adapterDC 5V 2A
Built-in batteryLi-battery 3200Mah
Standby timeWireless record≥9.5 hours(off-screen); ≥5hours(on-screen)
Wired record≥12 hours(off-screen); ≥6hours(on-screen) *LED camera not included.
Size (L x W x H) 131mm x 86mm x 18mm
Weight(g) 1000g



Competitive advantages:

good price, reliable quality, guarantee of delivery, best services
