High Light: | color ccd camera,outdoor CCD camera |
---|

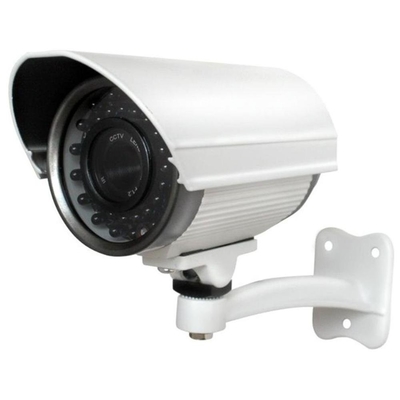

DSP Digital Color CCD Security Camera 540tvl AWB , Varifocal Lens 4-9mm
Camera Type | ir digital color ccd camera | |
Image Sensor | 1/3 Inch SONY Hi-Res. CCD | |
Effective Pixels | PAL:752(H) x582(V) 440K / NTSC:768(H) x494(V) 380K | |
Sensing Area | 4.9mm x 3.7mm | |
Signal System | PAL /NTSC | |
Horizontal Resolution | 540 TV Lines | |
Min. Illumination | Color(0.3 Lux), B/W(0 Lux,IR On) | |
Lens Mount | Varifocal 4-9mm Lens/F1.4 | |
S/N Ratio | More Than 48dB (AGC Off) | |
Electronic Shutter | 1/50(1/60) ~ 1/10,000 Sec. | |
White Balance | Auto | |
AGC | Auto | |
Infrared Luminary | 60 pieces Big IR-LED | |
Infrared Wavelength | 850 nm | |
Illuminate Distance | More than 50 M | |
Waterproof Criterion | IP66 | |
I/O Connector | Power : DC Power Jack , Video Output : BNC | |
Video Output Level | 1.0 Vp-p (75 Ohms, composite) | |
Supplied Voltage | DC12V Voltage | |
Power Consumption | IR On: 280mA max., IR Off: Less than 130mA | |
Dimensions | 160 x 100x97mm | |
Weight | Approx. 1.5kg |
