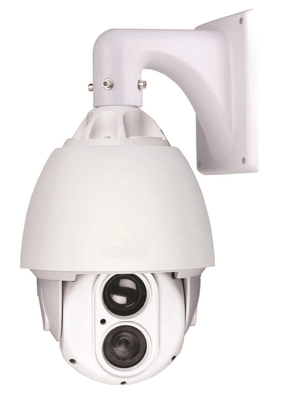

HD SDI High Speed PTZ IR Dome Camera, 1080p Full HD CCTV IR Cameras with 300m IR Laser

Model

LS-VSDIPT420LIR

Camera characteristics

Image sensor

1/2.8 inch Sony Exmor® CMOS sensor, 2MP

Zoom

20X optical zoom / 12X digital zoom

Lens

F=3.0-9.0mm, F1.2 to 2.1 angle: 90.0° - 32°

Resolution

1080p/30, 1080p/25, 720p/60, 720p/50, 720p/30, 720p/25

Min illumination

0LUX (IR ON)

S/N ratio

>50 dB

Focus

Auto／Manual

BLC

Auto／Manual

WDR

Auto／Manual

Video enhancement

AGC, Backlight compensation, AE, white balance, electronic shutter,Mirror, DNR etc

Shutter speed

1/1 to 1/10000 sec.

Gain control

Auto／Manual(–3 dB to +28 dB, 16 steps)

Max gain limit from (6 dB to 28 dB, 12 steps)

PTZ characteristics

Pan-tilt range

Horizontal: 360° , 0.08° to 300° /s

vertical:180°Auto rotation 0.08° to 300° /s

Preset position

220 presets

Sequence tour

4 (Auto, zone limiter and preset(on/off))

Preset tour

4

Pattern track

4,Pattern tour 100sec to each

Control mode

Built-in multiple protocols ,baud rate from 2400Bps to 19200Bps RS485

Idle protection

0 to 240sec

Boot-up action

Preset,tour

Alarm I/O

1 alarm input ,1 alarm output

Video output

HD-SDI, BNC 75 Ω

Operating temperature

-30℃ to 65℃,95% humidity

Size

280(diameter)mm X 380(height)mm

IR distance

300m IR distance

Weather protection

IP66

Power

AC24V/DC12V
